LTC2232CUK#TRPBF

LTC2232CUK#TRPBF Description

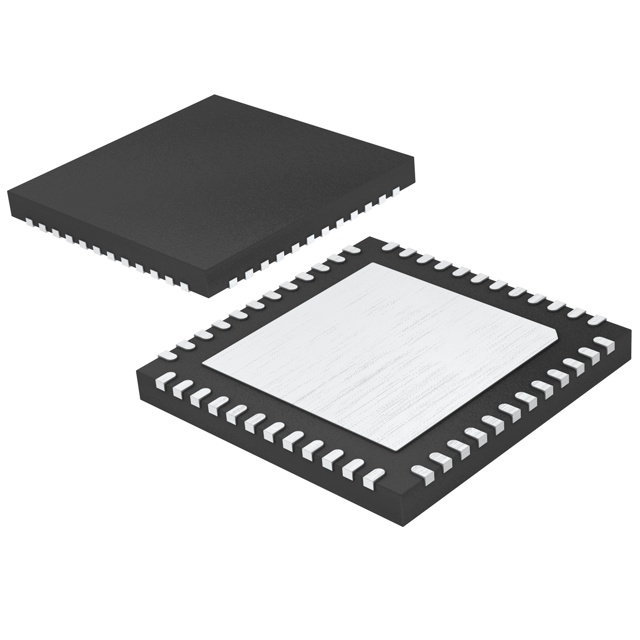

The LTC2232CUK#TRPBF is a high-performance, 10-bit analog-to-digital converter (ADC) designed by Analog Devices Inc., featuring a pipelined architecture. This ADC is housed in a 48-pin QFN package and is optimized for surface-mount applications. It operates within a supply voltage range of 3.1V to 3.5V for both analog and digital supplies, ensuring compatibility with a wide range of power sources. The LTC2232CUK#TRPBF supports a sampling rate of up to 105 million samples per second (MSPS), making it ideal for high-speed data acquisition systems.

The device is designed with a 1:1 sample-and-hold (S/H) to ADC ratio, ensuring minimal latency and high throughput. It features a parallel data interface, facilitating straightforward integration with various digital systems. The LTC2232CUK#TRPBF supports both differential and single-ended input types, providing flexibility in signal acquisition. It also includes both external and internal reference options, allowing designers to optimize performance based on their specific application requirements.

LTC2232CUK#TRPBF Features

• High-Speed Sampling: With a sampling rate of 105M samples per second, the LTC2232CUK#TRPBF is well-suited for applications requiring rapid data acquisition.
• 10-Bit Resolution: The 10-bit resolution ensures precise conversion of analog signals to digital data, suitable for a variety of high-precision applications.
• Flexible Input Options: The ADC supports both differential and single-ended inputs, providing flexibility in signal acquisition and compatibility with different types of sensors.
• Dual Supply Voltage Range: The device operates within a 3.1V to 3.5V supply voltage range for both analog and digital supplies, ensuring compatibility with various power sources.
• Pipelined Architecture: The pipelined architecture enables high throughput and minimal latency, making it ideal for real-time data processing applications.
• Parallel Data Interface: The parallel data interface simplifies integration with digital systems, reducing the complexity of system design.
• External/Internal Reference: The option for both external and internal reference sources allows designers to optimize performance based on their specific application requirements.
• Compliance and Reliability: The LTC2232CUK#TRPBF is REACH unaffected and RoHS3 compliant, ensuring environmental compliance and reliability in various operating conditions.

LTC2232CUK#TRPBF Applications

The LTC2232CUK#TRPBF is ideal for a variety of high-speed data acquisition applications, including:

• Communication Systems: High-speed data conversion for communication systems requiring rapid signal processing.
• Medical Imaging: Precise and rapid data acquisition for medical imaging applications, such as ultrasound and MRI.
• Industrial Automation: Real-time data acquisition for industrial automation systems, ensuring efficient and accurate process control.
• Aerospace and Defense: High-speed data acquisition for aerospace and defense applications, where precision and reliability are critical.
• Scientific Instruments: Data acquisition for scientific instruments requiring high-speed and high-precision measurements.

Conclusion of LTC2232CUK#TRPBF

The LTC2232CUK#TRPBF is a versatile and high-performance ADC that offers a balance of speed, precision, and flexibility. Its pipelined architecture and high sampling rate make it suitable for applications requiring rapid data acquisition and real-time processing. The device's support for both differential and single-ended inputs, combined with its parallel data interface, simplifies integration into various digital systems. The LTC2232CUK#TRPBF is an excellent choice for designers looking for a reliable and high-performance ADC that meets the demands of modern high-speed data acquisition systems.
