LTC3545EUD#PBF

LTC3545EUD#PBF Description

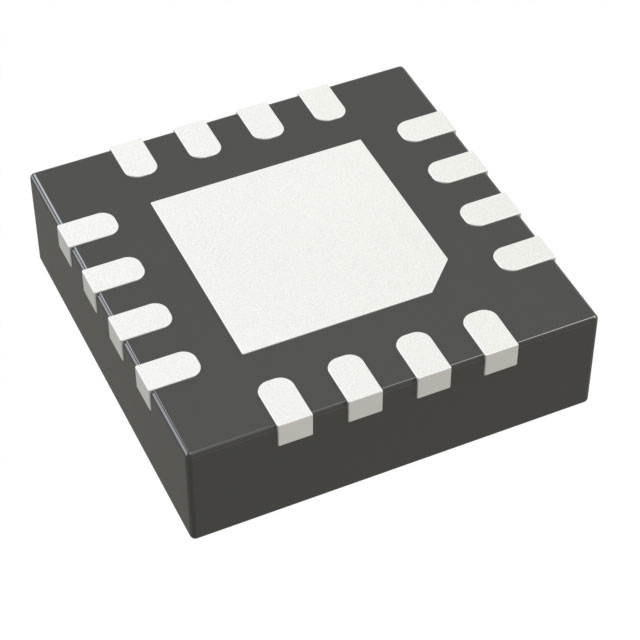

The LTC3545EUD#PBF from Analog Devices Inc. is a high-efficiency, triple-output synchronous buck regulator designed for compact, power-sensitive applications. This 16-QFN packaged IC delivers adjustable output voltages ranging from 0.6V to 5.5V, supporting input voltages between 2.25V and 5.5V. With a 2.25MHz switching frequency, it minimizes external component size while maintaining high performance. The device integrates three independent 800mA channels, making it ideal for multi-rail power systems. Its synchronous rectification ensures high efficiency (up to 95%), reducing thermal dissipation and improving battery life in portable applications.

LTC3545EUD#PBF Features

• Triple-Output Buck Regulator: Three independent 800mA outputs with adjustable voltage (0.6V–5.5V).
• High Switching Frequency (2.25MHz): Enables compact designs by reducing inductor and capacitor sizes.
• Wide Input Range (2.25V–5.5V): Supports Li-ion, Li-poly, and other low-voltage sources.
• Synchronous Rectification: Improves efficiency (>90%) and reduces heat dissipation.
• Low Dropout Operation: Maintains regulation even with input voltages close to output levels.
• ROHS3 & REACH Compliant: Environmentally friendly and suitable for industrial applications.
• Surface-Mount 16-QFN Package: Optimized for space-constrained PCB layouts.

LTC3545EUD#PBF Applications

• Portable Electronics: Smartphones, tablets, and wearables requiring multiple regulated rails.
• IoT & Wireless Devices: Power management for sensors, modules, and low-power MCUs.
• Embedded Systems: Multi-voltage FPGA, DSP, and processor power supplies.
• Medical Devices: Battery-operated equipment needing high efficiency and compact size.
• Industrial Controls: Distributed power systems with stringent size and efficiency requirements.

Conclusion of LTC3545EUD#PBF

The LTC3545EUD#PBF stands out as a versatile, high-performance buck regulator, offering triple-output flexibility, high efficiency, and a compact footprint. Its 2.25MHz switching frequency and synchronous rectification make it superior to non-synchronous or lower-frequency alternatives, particularly in space-constrained and battery-powered designs. Engineers will benefit from its wide input range, low dropout, and robust thermal performance, making it an excellent choice for modern portable and embedded systems.
