LTC6256CKC#TRPBF

LTC6256CKC#TRPBF Description

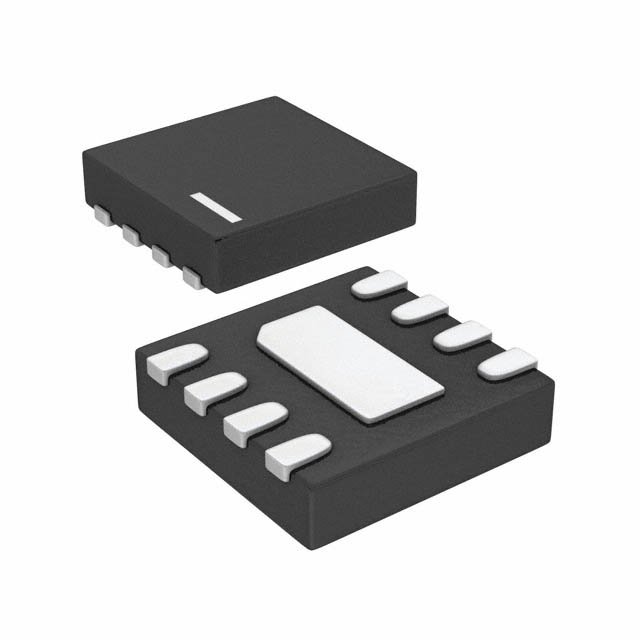

The LTC6256CKC#TRPBF is a general-purpose operational amplifier (op-amp) from Analog Devices Inc., designed for a wide range of applications requiring high performance and reliability. This dual-channel op-amp is housed in an 8-lead thermally enhanced DFN package, ensuring efficient heat dissipation and compact design. The LTC6256CKC#TRPBF operates within a supply voltage range of 1.8 V to 5.25 V, making it suitable for both low-power and higher-voltage applications. It features a -3dB bandwidth of 4.5 MHz and a gain bandwidth product of 6.5 MHz, providing excellent frequency response characteristics. The op-amp also boasts a slew rate of 1.8 V/µs, ensuring fast transient response and minimal distortion in signal processing.

LTC6256CKC#TRPBF Features

• Wide Supply Voltage Range: Operates from 1.8 V to 5.25 V, offering flexibility in various power supply configurations.
• High Bandwidth: -3dB bandwidth of 4.5 MHz and a gain bandwidth product of 6.5 MHz, suitable for high-frequency signal processing.
• Fast Slew Rate: 1.8 V/µs, ensuring minimal distortion and fast transient response.
• Low Input Bias Current: 5 nA, reducing the impact of input bias on signal integrity.
• Low Input Offset Voltage: 100 µV, enhancing the accuracy of analog signal processing.
• Low Supply Current: 65µA per channel, making it ideal for low-power applications.
• High Output Current: 35 mA per channel, capable of driving significant loads.
• Surface Mount Packaging: 8-lead thermally enhanced DFN package, suitable for compact and high-density designs.
• Moisture Sensitivity Level (MSL): Level 1 (Unlimited), ensuring robustness in various environmental conditions.
• Tape & Reel Packaging: Facilitates automated assembly processes, enhancing manufacturing efficiency.

LTC6256CKC#TRPBF Applications

The LTC6256CKC#TRPBF is well-suited for a variety of applications where high performance and reliability are critical. Its wide supply voltage range and low power consumption make it ideal for battery-powered devices and portable electronics. The high bandwidth and fast slew rate enable it to handle high-frequency signals, making it suitable for communication systems, signal conditioning, and audio processing. The low input bias current and offset voltage ensure accurate signal processing, making it a preferred choice for precision instrumentation and sensor interfacing. Additionally, its high output current capability allows it to drive significant loads, making it suitable for applications requiring high-output power.

Conclusion of LTC6256CKC#TRPBF

The LTC6256CKC#TRPBF from Analog Devices Inc. is a versatile and high-performance general-purpose op-amp that offers a wide range of features and benefits. Its wide supply voltage range, high bandwidth, fast slew rate, and low power consumption make it suitable for a variety of applications, from low-power portable devices to high-frequency signal processing systems. The low input bias current and offset voltage ensure accurate signal processing, while the high output current capability allows it to drive significant loads. The compact 8-lead thermally enhanced DFN package and surface mount design make it ideal for high-density and space-constrained applications. Despite being marked as obsolete, the LTC6256CKC#TRPBF remains a reliable and efficient choice for engineers seeking a robust and high-performance op-amp solution.
