Analog Devices Inc.

LTC6256IKC

LTC6256IKC Description

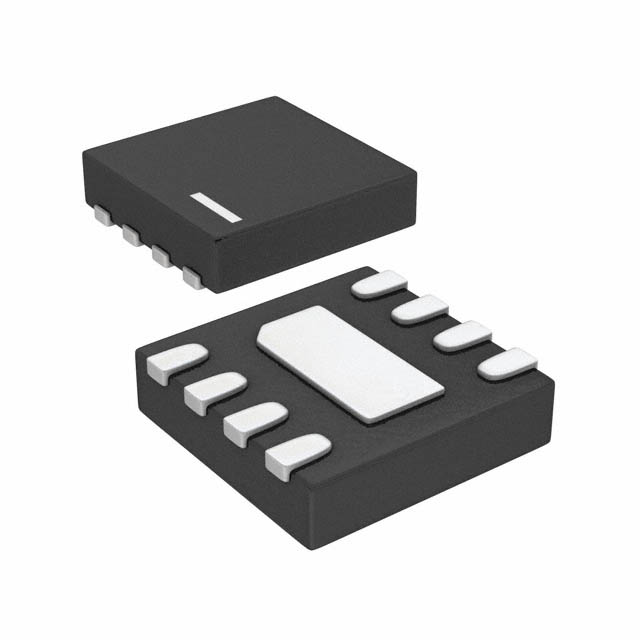

The LTC6256IKC is a general-purpose operational amplifier (op-amp) from Analog Devices Inc., designed for a wide range of applications requiring high performance and low power consumption. This dual-channel op-amp features an 8UTDFN package, making it suitable for surface mount applications. It operates within a supply voltage range of 1.8 V to 5.25 V, providing flexibility for various power supply configurations. With a maximum supply current of 65µA per channel, the LTC6256IKC is optimized for low power applications, making it ideal for battery-powered devices and portable electronics.

LTC6256IKC Features

• Wide Supply Voltage Range: The LTC6256IKC can operate from a minimum supply voltage of 1.8 V up to a maximum of 5.25 V, making it versatile for different power supply requirements.
• Low Power Consumption: With a supply current of only 65µA per channel, this op-amp is highly efficient, suitable for applications where power conservation is critical.
• High Bandwidth: The -3dB bandwidth of 4.5 MHz and a gain bandwidth product of 6.5 MHz ensure high-frequency performance, making it suitable for signal processing and filtering applications.
• Fast Slew Rate: The 1.8V/µs slew rate allows for rapid response to input signal changes, ensuring accurate signal reproduction.
• Low Input Bias Current: The 5 nA input bias current minimizes offset errors, enhancing the accuracy of the amplifier in precision applications.
• Low Input Offset Voltage: With an input offset voltage of 100 µV, the LTC6256IKC provides high accuracy and stability in signal amplification.
• High Output Current: Each channel can deliver up to 35 mA of output current, making it capable of driving various loads effectively.
• Moisture Sensitivity Level (MSL) 1: The LTC6256IKC is rated for unlimited exposure to moisture, ensuring reliability in a wide range of environmental conditions.

LTC6256IKC Applications

The LTC6256IKC is well-suited for a variety of applications due to its high performance and low power consumption. Some specific use cases include:

• Signal Conditioning: Ideal for amplifying and conditioning low-level signals in sensors and transducers.
• Battery-Powered Devices: Its low power consumption makes it suitable for portable electronics and battery-operated systems.
• Audio Applications: The high bandwidth and fast slew rate make it suitable for audio signal processing and amplification.
• Precision Measurement: The low input bias current and low input offset voltage ensure accurate measurements in precision instrumentation.
• Consumer Electronics: Suitable for applications requiring compact size and high performance, such as smartphones, tablets, and wearable devices.

Conclusion of LTC6256IKC

The LTC6256IKC from Analog Devices Inc. is a versatile and high-performance general-purpose op-amp that offers a wide range of benefits. Its low power consumption, high bandwidth, and fast slew rate make it an excellent choice for a variety of applications, particularly in portable and battery-powered devices. The low input bias current and low input offset voltage ensure high accuracy and stability, making it suitable for precision measurement and signal conditioning tasks. Despite being marked as obsolete, the LTC6256IKC remains a reliable and efficient solution for many electronic designs.
