MAX1181ECM+TD

MAX1181ECM+TD Description

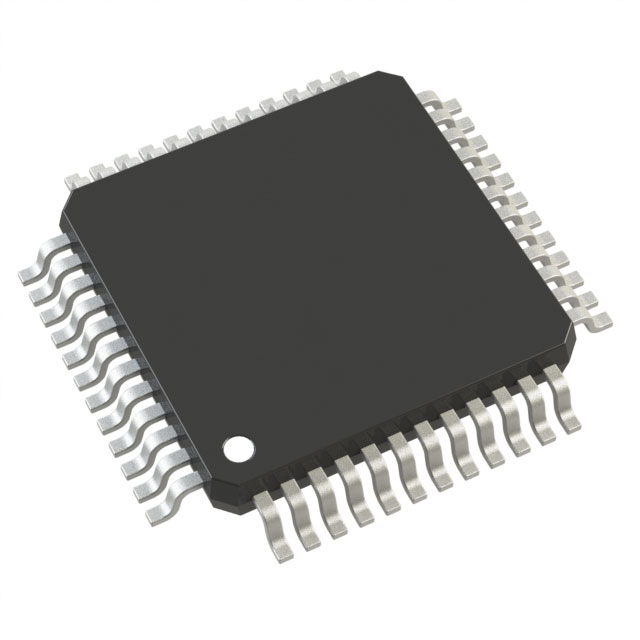

The MAX1181ECM+TD is a high-performance, 10-bit pipelined analog-to-digital converter (ADC) designed for demanding data acquisition applications. Manufactured by Analog Devices Inc./Maxim Integrated, this device is part of the MAX1181 family and is housed in a 48-pin TQFP package, suitable for surface mount applications. It features two A/D converters with simultaneous sampling capabilities, making it ideal for applications requiring precise and synchronized data capture.

MAX1181ECM+TD Features

• Dual A/D Converters: The MAX1181ECM+TD includes two 10-bit ADCs, each capable of converting analog signals to digital data with high precision.
• Parallel Data Interface: This feature allows for efficient data transfer, ensuring high-speed communication with other system components.
• Wide Supply Voltage Range: The device operates with an analog supply voltage ranging from 2.7V to 3.6V and a digital supply voltage within the same range, providing flexibility in power supply design.
• High Sampling Rate: With a sampling rate of 80 million samples per second (MSPS), the MAX1181ECM+TD can capture fast-changing signals with minimal latency.
• Simultaneous Sampling: This unique feature enables the device to sample two input channels simultaneously, which is crucial for applications requiring synchronized data acquisition.
• Differential and Single-Ended Inputs: The ADC supports both differential and single-ended input types, offering versatility in signal conditioning.
• Pipelined Architecture: The pipelined architecture ensures high throughput and low latency, making it suitable for real-time data processing.
• External and Internal Reference Options: The device supports both external and internal reference types, providing flexibility in system design.
• Compliance and Reliability: The MAX1181ECM+TD is REACH unaffected and RoHS3 compliant, ensuring environmental safety and regulatory compliance. It also has a moisture sensitivity level (MSL) of 3, suitable for extended storage periods.

MAX1181ECM+TD Applications

The MAX1181ECM+TD is well-suited for a variety of applications that demand high-speed, high-precision data acquisition. Some specific use cases include:

• Medical Imaging: In ultrasound and MRI systems, the simultaneous sampling capability ensures accurate and synchronized data capture, critical for high-resolution imaging.
• Industrial Automation: For real-time monitoring and control systems, the high sampling rate and precision of the MAX1181ECM+TD enable precise feedback and control mechanisms.
• Telecommunications: In high-speed communication systems, the device's ability to handle fast-changing signals makes it ideal for signal processing and data transmission.
• Aerospace and Defense: The robustness and reliability of the MAX1181ECM+TD make it suitable for critical applications in aerospace and defense, where high precision and reliability are paramount.

Conclusion of MAX1181ECM+TD

The MAX1181ECM+TD stands out as a versatile and high-performance ADC, offering significant advantages over similar models. Its dual ADCs with simultaneous sampling, high sampling rate, and flexible input options make it a powerful tool for data acquisition in various industries. The device's compliance with environmental and regulatory standards further enhances its suitability for modern applications. Whether used in medical imaging, industrial automation, telecommunications, or aerospace, the MAX1181ECM+TD delivers reliable and precise data capture, making it an essential component for high-performance systems.
