Analog Devices Inc./Maxim Integrated

MAX14655EWC+TCJD

MAX14655EWC+TCJD Description

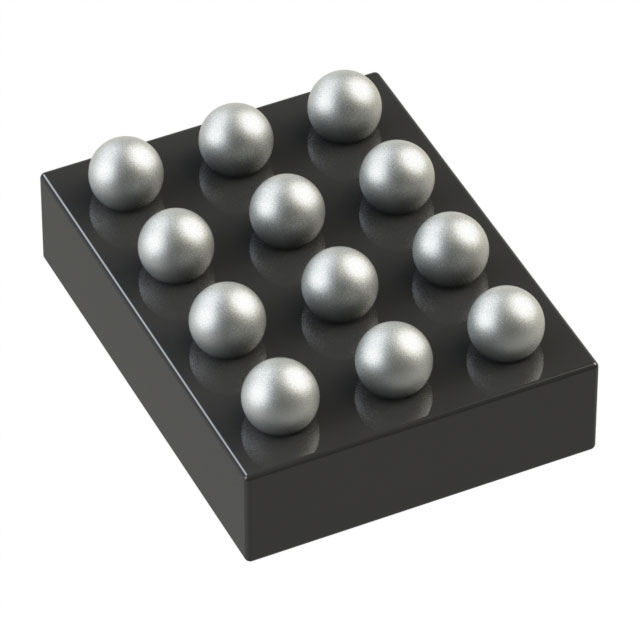

The MAX14655EWC+TCJD is a surface-mount, lithium-ion battery protection IC designed to safeguard battery packs from common fault conditions such as over current, over temperature, and over voltage. Manufactured by Analog Devices Inc./Maxim Integrated, this device is housed in a 12-WLP Tape & Reel (TR) package and is ROHS3 compliant. Despite its obsolete status, the MAX14655EWC+TCJD remains a reliable choice for applications requiring robust battery protection.

MAX14655EWC+TCJD Features

• Battery Chemistry Compatibility: Specifically designed for lithium-ion batteries, ensuring optimal performance and safety for these high-energy-density cells.
• Fault Protection: Provides comprehensive protection against over current, over temperature, and over voltage conditions, safeguarding the battery from potential damage and extending its lifespan.
• Surface Mount Technology: The surface-mount mounting type facilitates easy integration into compact and high-density designs, making it suitable for modern electronic devices.
• ROHS3 Compliance: Adheres to stringent environmental standards, ensuring the product is free from hazardous substances and suitable for environmentally conscious applications.
• Tape & Reel Packaging: The TR packaging format simplifies handling and assembly processes, enhancing manufacturing efficiency and reliability.

MAX14655EWC+TCJD Applications

The MAX14655EWC+TCJD is ideal for a range of applications where reliable battery protection is crucial. These include:

• Portable Electronics: Smartphones, tablets, and laptops benefit from the robust protection offered by this IC, ensuring safe and efficient operation of their lithium-ion batteries.
• Wearable Devices: Fitness trackers, smartwatches, and other wearable technology can leverage the MAX14655EWC+TCJD to protect their compact battery packs from common fault conditions.
• Medical Devices: Portable medical devices, such as glucose meters and portable defibrillators, require reliable battery protection to ensure uninterrupted operation and patient safety.
• Industrial Equipment: Handheld scanners, portable test equipment, and other industrial devices can benefit from the MAX14655EWC+TCJD's comprehensive protection features.

Conclusion of MAX14655EWC+TCJD

The MAX14655EWC+TCJD stands out as a reliable and comprehensive solution for protecting lithium-ion batteries from various fault conditions. Its surface-mount design, ROHS3 compliance, and compatibility with modern manufacturing processes make it an attractive choice for designers of portable and wearable electronics. Although now obsolete, the MAX14655EWC+TCJD continues to offer significant advantages in terms of safety and reliability, making it a valuable component for applications where battery protection is paramount.
