MAX14724EWP+T

MAX14724EWP+T Description

The MAX14724EWP+T is an advanced 8:4 multiplexer/demultiplexer IC designed by Analog Devices Inc./Maxim Integrated, offering superior performance and reliability for a wide range of electronic applications. This device is engineered to provide high efficiency and low power consumption, making it ideal for systems requiring minimal leakage current and fast switching times. With its low on-state resistance of 3 ohms and a -3dB bandwidth of 50MHz, the MAX14724EWP+T ensures high signal integrity and minimal signal degradation. The device operates from a dual supply voltage of ±5V and a single supply voltage ranging from 1.6V to 5.5V, providing flexibility in power supply options.

MAX14724EWP+T Features

• Low Leakage Current: The MAX14724EWP+T features a maximum leakage current of 250nA, ensuring minimal power loss and high efficiency in low-power applications.
• Fast Switching Times: With a typical turn-on time of 2µs and a turn-off time of 600ns, the MAX14724EWP+T offers rapid switching capabilities, making it suitable for high-speed signal routing.
• High Channel Matching: The device provides excellent channel-to-channel matching with a ΔRon of 500mOhm, ensuring consistent performance across all channels.
• Low Channel Capacitance: The MAX14724EWP+T has a channel capacitance of 50pF for CS(off) and 85pF for CD(off), minimizing signal distortion and ensuring high-frequency performance.
• Wide Operating Voltage Range: The device operates from a dual supply voltage of ±5V and a single supply voltage ranging from 1.6V to 5.5V, providing flexibility in power supply options.
• Compliance and Reliability: The MAX14724EWP+T is REACH unaffected and RoHS3 compliant, ensuring environmental safety and reliability. It also has a moisture sensitivity level (MSL) of 1, making it suitable for a wide range of manufacturing processes.

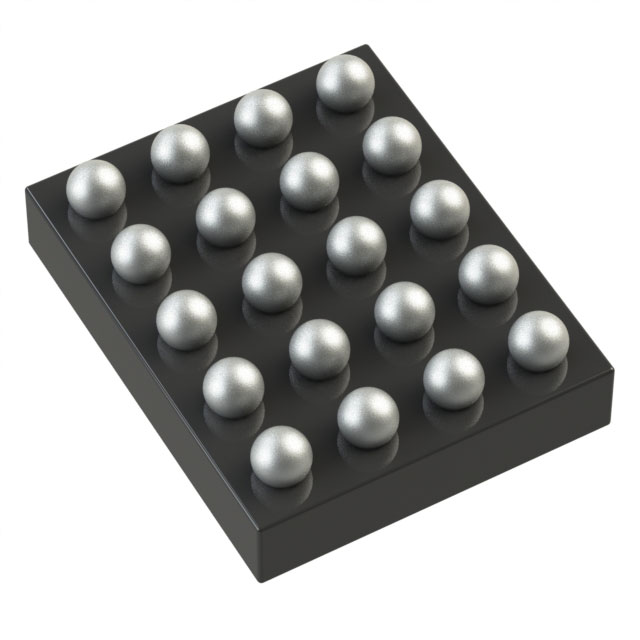

• Packaging: The device is available in a 20-lead WLP package, offering a compact and surface-mountable solution for space-constrained applications.

MAX14724EWP+T Applications

The MAX14724EWP+T is ideal for applications requiring high-speed signal routing and low power consumption. Some specific use cases include:

• Telecommunications: In high-speed data transmission systems, the MAX14724EWP+T can efficiently route signals between multiple channels, ensuring minimal latency and high signal integrity.
• Medical Equipment: For medical devices requiring precise signal routing and low power consumption, the MAX14724EWP+T provides a reliable solution with minimal leakage current and high reliability.
• Industrial Automation: In industrial control systems, the device can manage multiple sensor inputs and outputs, ensuring fast and accurate signal processing.
• Consumer Electronics: For applications such as high-definition video processing and audio routing, the MAX14724EWP+T offers high performance and low power consumption, making it suitable for battery-powered devices.

Conclusion of MAX14724EWP+T

The MAX14724EWP+T from Analog Devices Inc./Maxim Integrated stands out as a versatile and high-performance multiplexer/demultiplexer IC. Its low leakage current, fast switching times, and wide operating voltage range make it an excellent choice for a variety of applications, from telecommunications to consumer electronics. The device's compliance with environmental standards and its compact packaging further enhance its appeal for modern electronic designs. The MAX14724EWP+T is an ideal solution for engineers seeking a reliable and efficient signal routing solution in their designs.
