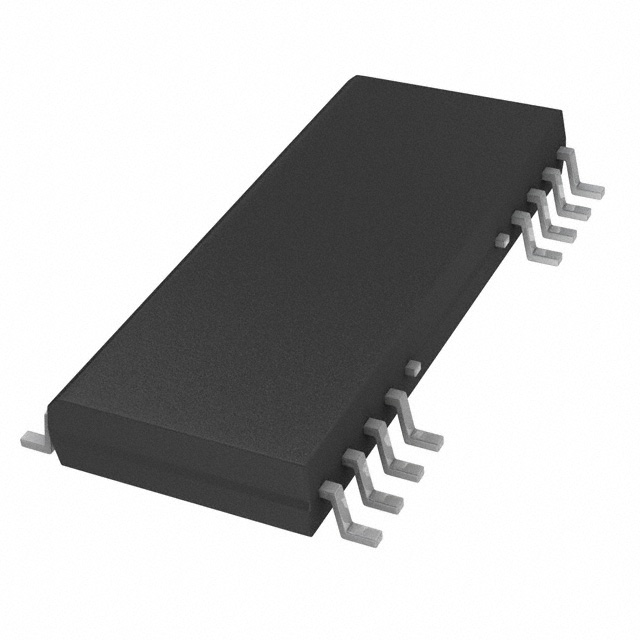

MAX3535EEWI+

MAX3535EEWI+ Description

The MAX3535EEWI+ is a high-performance RS422/RS485 transceiver from Analog Devices Inc./Maxim Integrated, designed for robust industrial and communication applications. Housed in a 28-pin SOIC package, this full-duplex transceiver supports data rates up to 1Mbps and operates across a 3V to 5.5V supply range, making it versatile for mixed-voltage systems. With 30mV receiver hysteresis, it ensures reliable signal integrity in noisy environments. The device is RoHS3 compliant, REACH unaffected, and features a Moisture Sensitivity Level (MSL) of 1, ensuring durability and longevity in harsh conditions.

MAX3535EEWI+ Features

• Full-duplex communication for simultaneous bidirectional data transfer.
• 1Mbps data rate enables high-speed serial communication.
• Wide supply voltage (3V–5.5V) for compatibility with diverse systems.
• 30mV receiver hysteresis enhances noise immunity in industrial environments.
• RS422/RS485 protocol support for flexible integration.
• Surface-mount (SOIC-28) packaging for compact PCB designs.
• Robust ESD protection and low-power operation for energy efficiency.
• RoHS3 and REACH compliant, meeting stringent environmental standards.

MAX3535EEWI+ Applications

The MAX3535EEWI+ is ideal for:

• Industrial automation: PLCs, motor control, and sensor networks requiring noise-resistant communication.
• Telecommunications: Base stations and networking equipment needing reliable full-duplex data transfer.
• Building automation: HVAC, lighting control, and security systems leveraging RS485 networks.
• Medical devices: Patient monitoring and diagnostic equipment demanding stable signal integrity.
• Automotive systems: CAN bus alternatives and in-vehicle communication networks.

Conclusion of MAX3535EEWI+

The MAX3535EEWI+ stands out as a high-reliability transceiver for demanding applications, combining speed, noise immunity, and wide voltage operation. Its full-duplex capability and industrial-grade robustness make it superior to basic half-duplex alternatives, while its compliance with environmental standards ensures future-proof designs. Whether for factory automation, telecom, or medical systems, this transceiver delivers performance, durability, and flexibility in a compact form factor.
