OP4177AR

OP4177AR Description

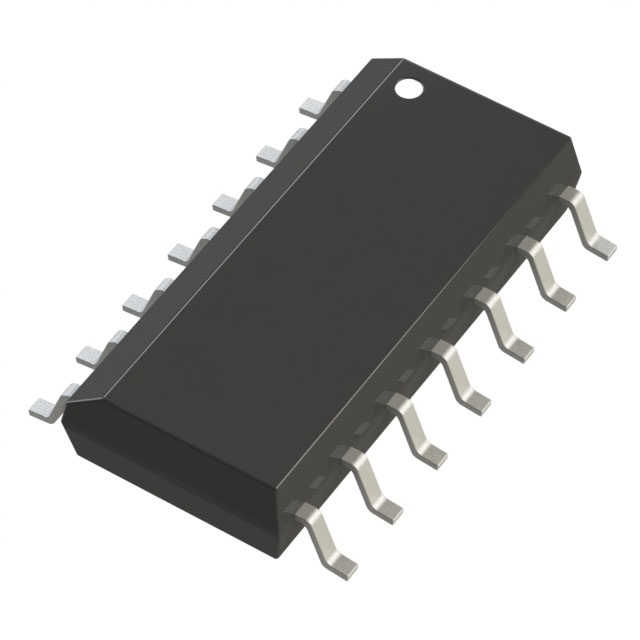

The OP4177AR from Analog Devices Inc. is a high-precision, quad-channel general-purpose operational amplifier (op-amp) housed in a 14-SOIC package. Designed for surface-mount applications, this IC delivers exceptional performance with a low input offset voltage of 15 µV and ultra-low input bias current of 500 pA, making it ideal for precision analog signal conditioning. Operating over a wide supply voltage range (5V to 30V), the OP4177AR features a gain bandwidth product of 1.3 MHz and a slew rate of 0.7V/µs, ensuring stable and responsive performance in dynamic circuits. Despite its obsolete status, it remains a reliable choice for legacy designs requiring low-power (400µA per channel) and high-accuracy amplification.

OP4177AR Features

• Quad-Channel Design: Integrates four independent op-amps in a single package, saving board space.
• Low Power Consumption: 400µA supply current per channel extends battery life in portable applications.
• High Precision: 15 µV input offset voltage and 500 pA input bias current minimize errors in sensitive circuits.
• Wide Supply Range: Supports 5V to 30V, accommodating diverse power requirements.
• Moderate Speed: 1.3 MHz GBW and 0.7V/µs slew rate suit low-to-medium bandwidth applications.
• Robust Packaging: 14-SOIC with MSL 1 (Unlimited) moisture sensitivity ensures easy handling and assembly.

OP4177AR Applications

The OP4177AR excels in precision analog systems, including:

• Sensor Signal Conditioning: Ideal for amplifying low-level signals from thermocouples, strain gauges, or RTDs.
• Active Filters: Its stable bandwidth and low noise suit multi-stage filter designs.
• Industrial Control Systems: Operates reliably in harsh environments with wide supply voltage tolerance.
• Medical Instrumentation: Low bias current minimizes leakage errors in high-impedance circuits.
• Legacy Equipment Maintenance: A dependable replacement for obsolete quad op-amp designs.

Conclusion of OP4177AR

The OP4177AR combines precision, low power, and quad-channel integration, making it a versatile solution for analog signal processing. While marked obsolete, its low offset voltage, wide supply range, and robust performance ensure continued relevance in precision applications. Engineers working on sensor interfaces, industrial controls, or legacy system upgrades will find this IC a reliable choice, though newer alternatives should be evaluated for long-term designs.
