SSM2804CBZ-RL

SSM2804CBZ-RL Description

The SSM2804CBZ-RL is a high-performance Class D audio amplifier designed by Analog Devices Inc., a leading innovator in the field of linear IC chips. This amplifier is renowned for its efficiency and compact design, making it ideal for a wide range of audio applications. The SSM2804CBZ-RL is capable of delivering a maximum output power of 3.6W per channel at a 4-ohm load and 40mW per channel at a 16-ohm load, ensuring robust performance across various impedance levels. It operates within a supply voltage range of 2.5V to 3.6V, providing flexibility in power supply options.

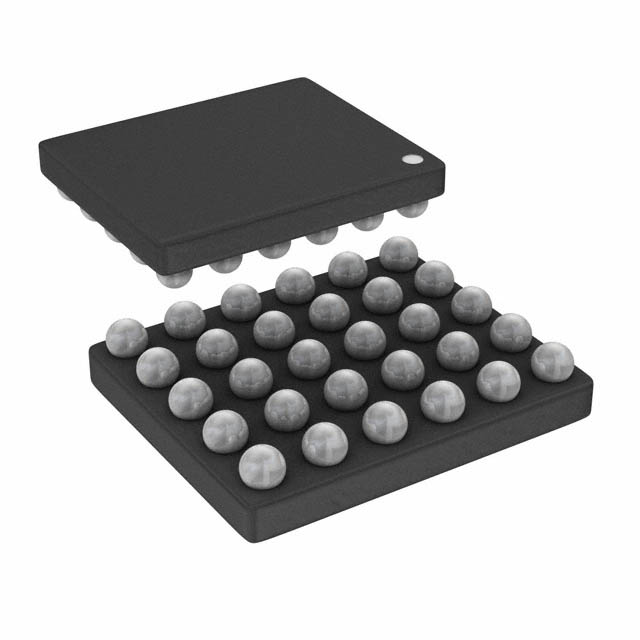

The SSM2804CBZ-RL is housed in a 30-lead WLCSP (wafer-level chip-scale package) and is available in a tape and reel packaging format, facilitating efficient surface mount assembly processes. Despite its obsolescence, this amplifier remains a valuable component due to its unique features and performance benefits. It is classified under ECCN EAR99 and has an HTSUS code of 85423.3.0001, indicating its compliance with international trade regulations. The moisture sensitivity level (MSL) of 1 (unlimited) ensures that the component can be stored and handled without stringent humidity control requirements.

SSM2804CBZ-RL Features

The SSM2804CBZ-RL stands out due to several key features that enhance its performance and reliability:

• High Efficiency: As a Class D amplifier, the SSM2804CBZ-RL offers superior efficiency compared to traditional Class AB amplifiers, resulting in lower power consumption and reduced heat generation.
• Dual Channel Output: With a maximum output power of 3.6W per channel at a 4-ohm load, the SSM2804CBZ-RL is capable of driving two high-performance audio channels simultaneously, making it suitable for stereo applications.
• Wide Supply Voltage Range: The ability to operate within a supply voltage range of 2.5V to 3.6V provides flexibility in system design, accommodating various power supply configurations.
• Compact Packaging: The 30-lead WLCSP package ensures a small footprint, making it ideal for space-constrained applications.
• Surface Mount Compatibility: The surface mount design facilitates automated assembly processes, enhancing manufacturing efficiency and reliability.
• Low Moisture Sensitivity: With an MSL of 1 (unlimited), the SSM2804CBZ-RL can be stored and handled without the need for special humidity control measures, reducing logistical complexities.

SSM2804CBZ-RL Applications

The SSM2804CBZ-RL is well-suited for a variety of applications where high audio performance and compact design are critical:

• Portable Audio Devices: The high efficiency and low power consumption make it ideal for battery-powered devices such as smartphones, tablets, and portable speakers.
• Home Audio Systems: The dual-channel output capability and high output power ensure high-quality audio performance in home theater systems and soundbars.
• Automotive Audio: The robust design and wide operating voltage range make it suitable for automotive audio systems, where it can deliver high-fidelity sound even under varying electrical conditions.
• Professional Audio Equipment: The SSM2804CBZ-RL can be used in professional audio mixing consoles and studio monitors, providing reliable and high-quality audio amplification.

Conclusion of SSM2804CBZ-RL

The SSM2804CBZ-RL from Analog Devices Inc. is a versatile and high-performance Class D audio amplifier that offers significant advantages over similar models. Its high efficiency, dual-channel output, and wide supply voltage range make it suitable for a wide range of applications, from portable devices to professional audio equipment. Despite its obsolescence, the SSM2804CBZ-RL remains a valuable component due to its unique features and performance benefits. Its compact packaging and low moisture sensitivity further enhance its appeal for modern electronic designs.
