4609M-101-101LF

4609M-101-101LF Description

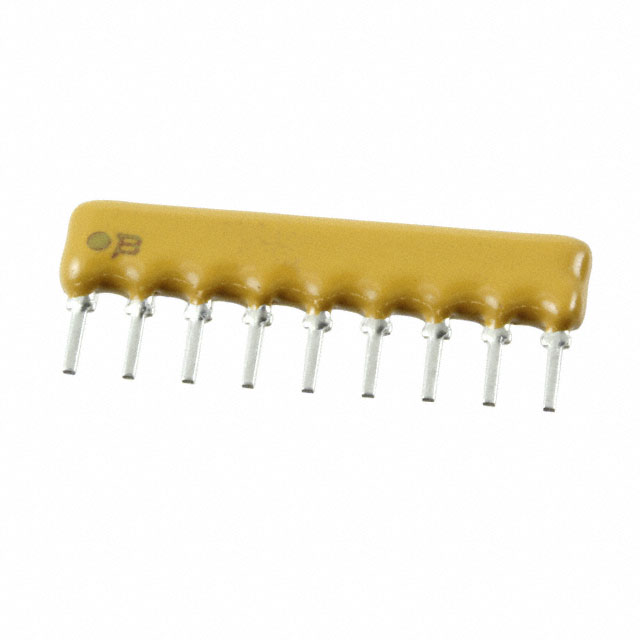

The 4609M-101-101LF from Bourns Inc. is an 8-resistor bussed network array housed in a compact 9-pin SIP package. Designed for through-hole mounting, it features a 100Ω resistance per element with a tight ±2% tolerance, ensuring reliable performance in precision circuits. The device operates within a ±100ppm/°C temperature coefficient range, with a 50ppm/°C resistor-ratio drift, making it stable under varying thermal conditions. Its 250mW power rating per element and ROHS3/REACH compliance align with modern environmental and performance standards. The 0.898" × 0.098" (22.81mm × 2.49mm) footprint and 6.35mm height suit space-constrained designs.

4609M-101-101LF Features

• High-Density Integration: 8 resistors in a single SIP package reduce PCB space and assembly complexity.
• Stable Performance: Low ±100ppm/°C TCR and 50ppm/°C ratio drift ensure minimal resistance variation.
• Robust Construction: Through-hole design enhances mechanical durability for harsh environments.
• Broad Compliance: Meets ROHS3, REACH, and EAR99/ECCN requirements for global deployment.
• MSL-Exempt: Not moisture-sensitive, simplifying storage and handling.

4609M-101-101LF Applications

Ideal for analog signal conditioning, voltage division, and pull-up/down networks in:

• Industrial Control Systems: Stable performance in PLCs and sensor interfaces.
• Consumer Electronics: Durable solution for audio equipment and power management.
• Automotive Electronics: Reliable operation in infotainment and ECU circuits.
• Test & Measurement: Precision resistance networks for calibration devices.

Conclusion of 4609M-101-101LF

The 4609M-101-101LF combines high density, thermal stability, and ease of integration, making it a superior choice for applications demanding repeatable resistance values. Its compliance with environmental standards and rugged through-hole design further extend its suitability for industrial and automotive use. Bourns' reputation for quality ensures this array meets rigorous performance expectations.
