Bourns, Inc.

CAT10-563J4LF

Resistor Networks & Arrays

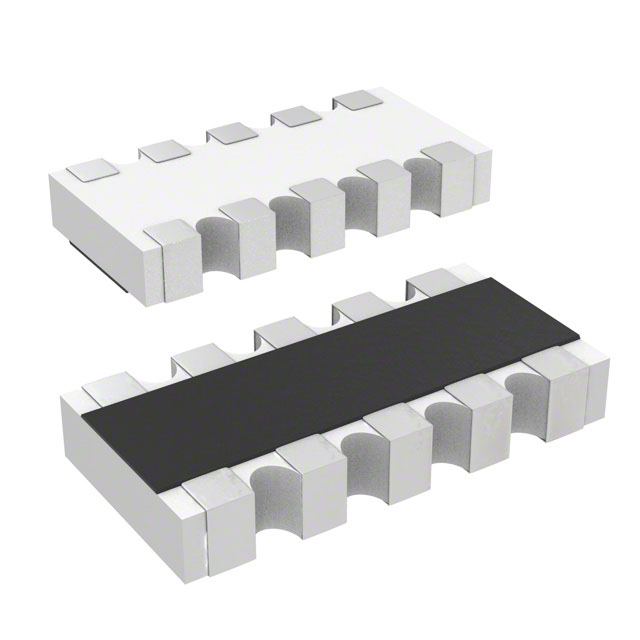

CAT10-563J4LF Description

The CAT10-563J4LF from Bourns Inc. is a high-performance 4-resistor network designed for precision surface-mount applications. Housed in an 0804 concave long-side terminal package, it offers a compact footprint of 2.00mm x 1.00mm (0.079" x 0.039") with a low profile of 0.55mm (0.022"), making it ideal for space-constrained PCB designs. Each resistor in the array features a 56kΩ resistance with a ±5% tolerance and a ±250ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. The isolated circuit configuration allows for flexible design integration, while the 62.5mW power rating per element ensures reliable operation in low-power circuits.

CAT10-563J4LF Features

• Compact 0804 Package: Space-saving concave design with long-side terminals for improved solderability.
• Stable Performance: Low ±250ppm/°C temperature coefficient and ±5% tolerance for consistent operation.
• High Reliability: ROHS3 Compliant and REACH Unaffected, meeting stringent environmental standards.
• Surface-Mount Ready: MSL 1 (Unlimited) rating ensures ease of handling and storage.
• Isolated Circuit Configuration: Enables independent use of each resistor, enhancing design flexibility.
• Tape & Reel Packaging: Facilitates automated assembly processes for high-volume production.

CAT10-563J4LF Applications

The CAT10-563J4LF is particularly suited for:

• Signal Conditioning: Precision voltage division and impedance matching in analog circuits.
• Consumer Electronics: Integration into compact devices like smartphones, wearables, and IoT modules.
• Industrial Controls: Reliable performance in sensor interfaces, PLCs, and measurement equipment.
• Automotive Electronics: Stable operation in infotainment systems and onboard control units.
• Medical Devices: Low-power, high-reliability requirements in portable diagnostic equipment.

Conclusion of CAT10-563J4LF

The CAT10-563J4LF resistor network stands out for its compact size, stable performance, and versatility, making it a preferred choice for modern electronics requiring precision and reliability. Its isolated circuit design, robust construction, and compliance with environmental standards ensure suitability for a wide range of applications, from consumer gadgets to industrial systems. Bourns' commitment to quality further solidifies this component as a dependable solution for engineers seeking high-density, high-performance resistor arrays.

CAT10-563J4LF Documents

Download datasheets and manufacturer documentation for CAT10-563J4LF

PCN Assembly/Origin :

CAT10 Series 20/Mar/2019

Datasheets :

CAT10 Series

HTML Datasheet :

CAT10 Series

PCN Design/Specification :

Multiple Series Specification 14/Feb/2020

Environmental Information :

RoHS CAT10, CAT16, CAT25, CAYxx, CHP, CHV Series       CAT10-J4LF Material Declaration
