ASMB-BTE1-0B332

ASMB-BTE1-0B332 Description

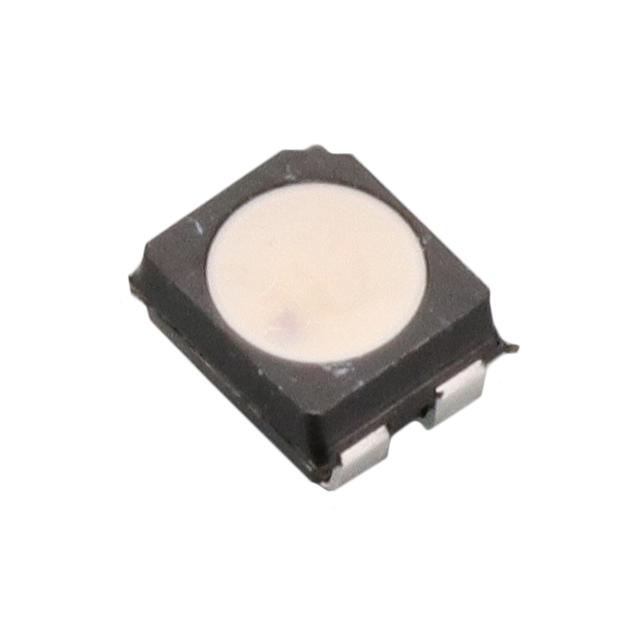

The ASMB-BTE1-0B332 from Broadcom Limited is a high-performance RGB LED designed for surface-mount applications. This diffused, common anode LED features dominant wavelengths of 622nm (Red), 529nm (Green), and 469nm (Blue), with peak wavelengths at 629nm, 521nm, and 464nm, respectively. Its white diffused lens ensures uniform light dispersion, while the 110° wide viewing angle enhances visibility from multiple orientations. The LED is housed in a compact 3.20mm x 2.80mm x 1.90mm 4-PLCC package, making it suitable for space-constrained designs. With a millicandela rating of 630mcd (Red), 1500mcd (Green), and 350mcd (Blue), it delivers bright, vivid colors ideal for indication and display purposes.

ASMB-BTE1-0B332 Features

• RGB Color Mixing: Combines Red, Green, and Blue in a single package for versatile color output.
• High Brightness: 1500mcd Green and 630mcd Red ensure excellent visibility in various lighting conditions.
• Diffused Lens: White diffused lens provides uniform light distribution and reduces glare.
• Wide Viewing Angle: 110° angle ensures broad visibility for multi-directional applications.
• Low Forward Voltage: 2.1V (Red), 3.1V (Green/Blue) at 20mA test current for energy efficiency.
• Compact SMD Design: 3.20mm x 2.80mm footprint with 1.90mm height for high-density PCB layouts.
• Reliable Compliance: ROHS3 Compliant and REACH Unaffected, meeting environmental standards.
• Packaging: Supplied in Tape & Reel (TR) for automated assembly efficiency.

ASMB-BTE1-0B332 Applications

This LED is ideal for applications requiring multicolor indication, status displays, and decorative lighting, including:

• Consumer Electronics: Backlighting for buttons, indicators in smart devices, and gaming peripherals.
• Automotive Displays: Dashboard indicators, interior lighting, and infotainment systems.
• Industrial Equipment: Status signaling in control panels, machinery, and safety systems.
• IoT Devices: Visual feedback in smart home sensors, wearables, and connected appliances.
• Advertising & Signage: Compact RGB lighting for dynamic displays and promotional boards.

Conclusion of ASMB-BTE1-0B332

The ASMB-BTE1-0B332 is a versatile, high-brightness RGB LED offering excellent color output, energy efficiency, and compact design. Its diffused lens and wide viewing angle make it suitable for applications requiring uniform illumination and multi-directional visibility. While the product is obsolete, its performance characteristics remain competitive for legacy designs or replacements. Engineers and designers can leverage its brightness, color accuracy, and reliability in diverse electronic systems where multicolor indication is critical.
