Broadcom

BCM5464SA1IRBG

Drivers, Receivers, Transceivers

BCM5464SA1IRBG Description

The BCM5464SA1IRBG is a high-performance transceiver IC designed and manufactured by Broadcom Limited. This obsolete device features a 354-ball BGA package and supports both full and half duplex modes, making it suitable for various Ethernet applications. With a 1/1 driver/receiver configuration, this transceiver offers reliable performance in high-speed data transmission. The device is REACH unaffected and RoHS3 compliant, ensuring environmental safety and regulatory compliance.

BCM5464SA1IRBG Features

• 1/1 Driver/Receiver Configuration: The BCM5464SA1IRBG provides a single driver and receiver, enabling efficient data transmission and reception in Ethernet applications.
• Full and Half Duplex Support: This transceiver supports both full and half duplex modes, offering flexibility in data communication and compatibility with various network configurations.

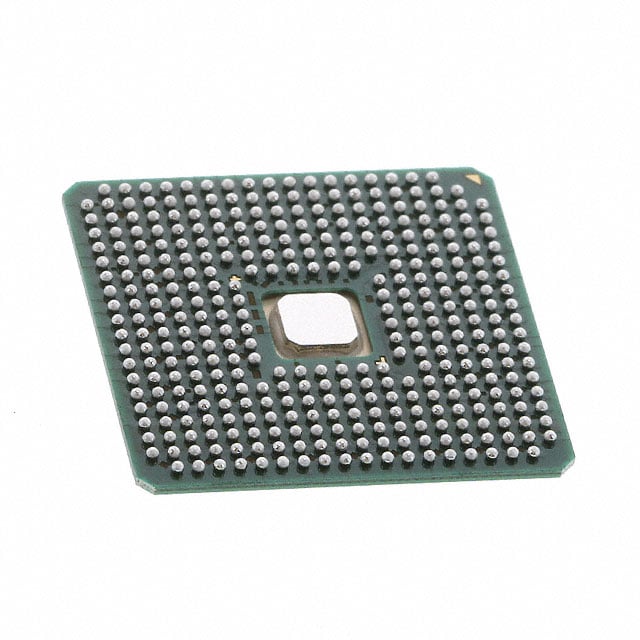

• 354-Ball BGA Package: The compact 354-ball BGA package allows for easy integration into high-density PCB designs, reducing space requirements and improving overall system performance.
• Ethernet Protocol: Designed for Ethernet applications, the BCM5464SA1IRBG ensures compatibility with industry-standard protocols and data transmission formats.
• REACH Unaffected: This device is not affected by the Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulations, ensuring compliance with European Union environmental standards.
• RoHS3 Compliant: The BCM5464SA1IRBG meets the Restriction of Hazardous Substances (RoHS) Directive, ensuring the safe use of materials and reducing environmental impact.

BCM5464SA1IRBG Applications

The BCM5464SA1IRBG is ideal for various Ethernet applications, including:

1. Networking Equipment: This transceiver can be used in switches, routers, and other networking devices to enable high-speed data transmission and reception.
2. Industrial Automation: The device's robust performance and compatibility with Ethernet protocols make it suitable for industrial automation systems, where reliable communication is critical.
3. Telecommunications: The BCM5464SA1IRBG can be used in telecommunications infrastructure to support high-speed data transmission between network nodes.
4. Data Centers: This transceiver is ideal for data center applications, where high-density PCB designs and efficient data transmission are essential.

Conclusion of BCM5464SA1IRBG

The BCM5464SA1IRBG is a versatile and high-performance transceiver IC designed for Ethernet applications. Its 1/1 driver/receiver configuration, full and half duplex support, and compact 354-ball BGA package make it suitable for a wide range of applications, including networking equipment, industrial automation, telecommunications, and data centers. Despite being an obsolete device, the BCM5464SA1IRBG remains a reliable choice for systems that require high-speed data transmission and reception while adhering to environmental and regulatory standards.

BCM5464SA1IRBG Documents

Download datasheets and manufacturer documentation for BCM5464SA1IRBG

Datasheets :

BCM5464S Product Brief

PCN Obsolescence/ EOL :

Mult Dev EOL 23/Sep/2019

HTML Datasheet :

BCM5464S Product Brief
