743C083220JP

743C083220JP Description

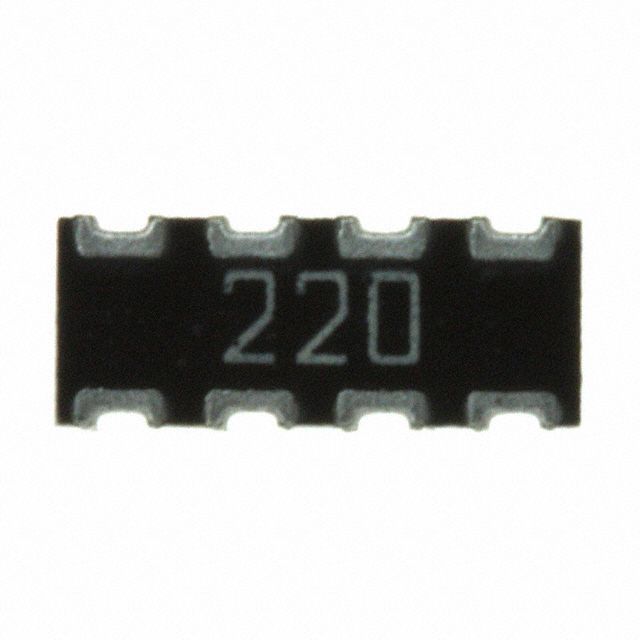

The 743C083220JP from CTS Resistor Products is a compact, surface-mount resistor network designed for high-density PCB applications. This 4-resistor array features a 22Ω resistance per element with a ±5% tolerance, making it suitable for precision signal conditioning and voltage division circuits. Encased in a 2008 concave long-side terminal package (5.08mm x 2.00mm), it offers a low-profile height of 0.70mm, ideal for space-constrained designs. The isolated circuit type ensures independent resistor functionality, while its ±200ppm/°C temperature coefficient provides stable performance across varying thermal conditions.

743C083220JP Features

• High Integration: Combines four 22Ω resistors in a single 8-pin package, reducing board footprint.
• Robust Construction: ROHS3 compliant and REACH unaffected, meeting stringent environmental standards.
• Reliable Power Handling: 100mW power per element ensures durability in continuous operation.
• Surface-Mount Ready: Tape & Reel (TR) packaging streamlines automated assembly processes.
• Wide Operating Range: MSL 1 (Unlimited) moisture sensitivity allows extended shelf life and handling flexibility.

743C083220JP Applications

This resistor array excels in:

• Consumer Electronics: Voltage division in displays, touchscreens, and audio circuits.
• Industrial Controls: Signal termination and pull-up/down networks in PLCs and sensors.
• Telecom Infrastructure: Impedance matching in high-frequency communication modules.
• Automotive Systems: ECU signal conditioning due to its stable thermal performance.

Conclusion of 743C083220JP

The 743C083220JP balances compactness, precision, and reliability, making it a versatile choice for modern electronics. Its obsolete status may require design alternatives, but its proven performance in isolated resistor networks ensures legacy system compatibility. Engineers value its ease of integration and consistent performance, particularly in applications demanding space efficiency and thermal stability. For legacy designs or replacements, this model remains a benchmark in resistor array technology.
