743C083272JP

743C083272JP Description

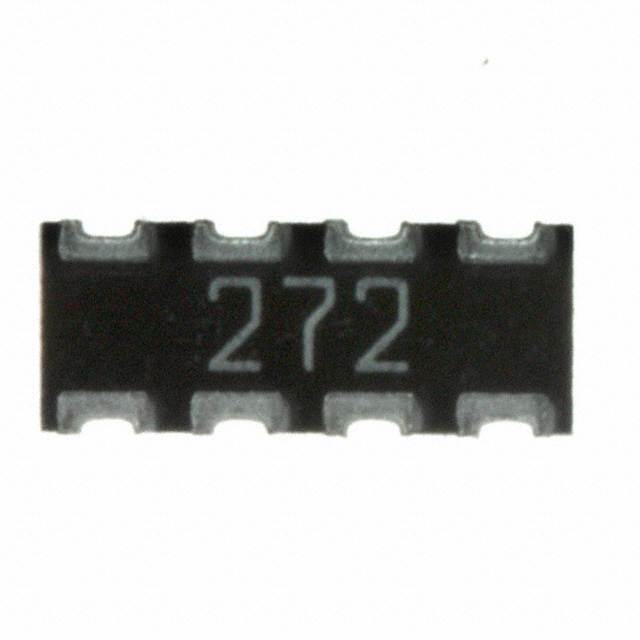

The 743C083272JP is a 4-resistor network from CTS Resistor Products, designed for surface-mount applications in compact electronic assemblies. Part of the 743 series, it features a 2.7kΩ resistance per element with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 2008 package (5.08mm x 2.00mm) with concave, long-side terminals, this array offers a low-profile design with a seated height of just 0.70mm, making it suitable for space-constrained PCB layouts. The isolated circuit type allows independent resistor functionality, while the 100mW power rating per element ensures reliable operation in low-power circuits.

743C083272JP Features

• Compact & Robust: 2008 package (5.08mm x 2.00mm) with a slim 0.70mm profile for high-density designs.
• Stable Performance: ±200ppm/°C temperature coefficient and ±5% tolerance for consistent operation.
• Surface-Mount Ready: Long-side terminals enhance solderability and mechanical stability.
• Isolated Resistors: Independent circuits enable flexible design configurations.
• Compliant & Reliable: ROHS3 and REACH compliant, with MSL 1 (unlimited) moisture sensitivity for extended shelf life.
• Obsolete Status: While no longer in production, existing stock remains viable for legacy or low-volume applications.

743C083272JP Applications

This resistor network excels in precision analog and digital circuits, including:

• Signal conditioning in sensor interfaces and data acquisition systems.
• Pull-up/pull-down networks for microcontrollers and logic circuits.
• Voltage division in low-power measurement devices.
• Legacy electronics repair, where its form factor and specs match older designs.
  Its isolated resistors make it ideal for applications requiring independent signal paths, while the 2008 package ensures compatibility with automated assembly processes.

Conclusion of 743C083272JP

The 743C083272JP is a high-density, reliable resistor array tailored for space-efficient, low-power designs. Though obsolete, its stable performance, compliance with environmental standards, and versatile isolated-circuit design make it a practical choice for legacy systems or niche applications. Engineers seeking a compact, surface-mount solution for signal processing or voltage division will find this component a dependable option, particularly where board real estate and precision are critical.
