744C083183JP

744C083183JP Description

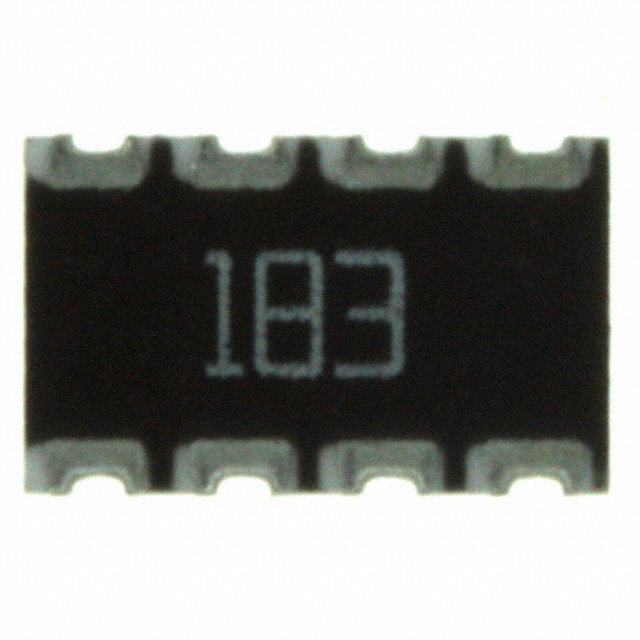

The 744C083183JP from CTS Resistor Products is a high-density, surface-mount resistor network designed for precision applications in compact electronic assemblies. This 4-resistor array features an 18kΩ resistance per element with a ±5% tolerance, ensuring reliable performance in analog and digital circuits. Encased in a 2012 (5.08mm x 3.20mm) concave package with long-side terminals, it offers a low-profile height of 0.028" (0.70mm), making it ideal for space-constrained designs. The isolated circuit configuration allows independent resistor operation, while the ±200ppm/°C temperature coefficient ensures stability across varying environmental conditions.

744C083183JP Features

• Compact Design: 2012 package (0.200" x 0.126") with a slim 0.70mm profile for high-density PCB layouts.
• Robust Performance: ±5% tolerance and 125mW power rating per resistor for consistent operation.
• Environmental Resilience: ROHS3 compliance and REACH unaffected status, suitable for eco-conscious designs.
• Reliable Construction: Moisture Sensitivity Level (MSL) 1 (Unlimited) ensures durability in humid environments.
• Efficient Packaging: Supplied in Tape & Reel (TR) for automated assembly processes.

744C083183JP Applications

This resistor network excels in applications requiring precision and space efficiency, such as:

• Signal Conditioning: Voltage division and current limiting in sensor interfaces.
• Consumer Electronics: Integration into smartphones, tablets, and wearables due to its compact footprint.
• Industrial Controls: Use in PLCs and motor drives where stable resistance values are critical.
• Automotive Systems: Suitable for infotainment and ECU modules, leveraging its wide temperature tolerance.

Conclusion of 744C083183JP

The 744C083183JP combines CTS Corporation's legacy of reliability with advanced packaging technology, delivering a balance of performance and miniaturization. While marked as obsolete, its specifications remain relevant for legacy designs or replacements. Its isolated resistors, low thermal drift, and compliance with environmental standards make it a pragmatic choice for engineers prioritizing durability and efficiency in modern electronics.
