744C083220JP

744C083220JP Description

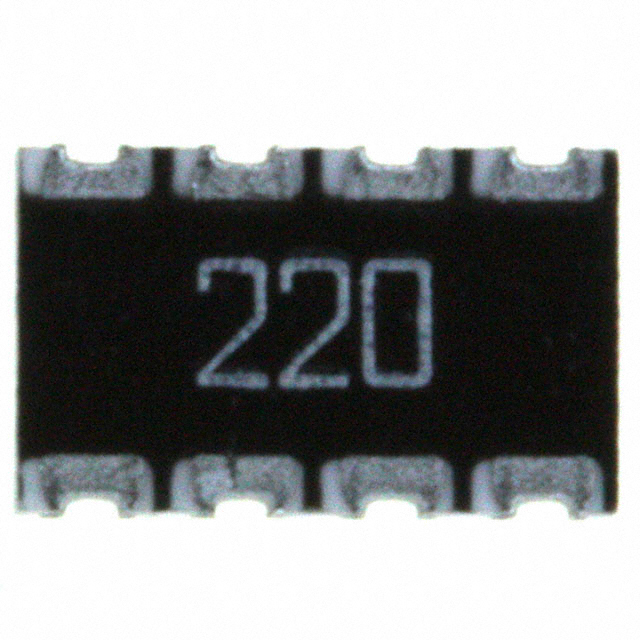

The 744C083220JP from CTS Resistor Products is a compact, surface-mount resistor network designed for high-density PCB applications. This 4-resistor array features a 22Ω resistance per element with a ±5% tolerance, ensuring stable performance in precision circuits. Encased in a 2012 concave long-side terminal package, it measures 0.200" x 0.126" (5.08mm x 3.20mm) with a low-profile height of 0.028" (0.70mm), making it ideal for space-constrained designs. The isolated circuit configuration allows independent resistor operation, while the ±200ppm/°C temperature coefficient ensures reliability across varying thermal conditions.

744C083220JP Features

• High Power Handling: Each resistor supports 125mW power dissipation, suitable for moderate-load applications.
• Robust Construction: ROHS3 compliant and REACH unaffected, meeting stringent environmental standards.
• Ease of Assembly: Supplied in Tape & Reel (TR) packaging for automated SMT processes, with MSL 1 (Unlimited) moisture sensitivity for extended shelf life.
• Reliable Performance: Concave terminal design enhances solder joint integrity, reducing mechanical stress.
• Obsolete Status: While no longer in production, this model remains a dependable choice for legacy or low-volume designs.

744C083220JP Applications

This resistor array excels in:

• Signal Conditioning: Precision voltage division in sensor interfaces or ADC circuits.
• Pull-Up/Down Networks: Stabilizing digital logic lines in microcontrollers and FPGAs.
• Consumer Electronics: Space-saving solutions for smartphones, wearables, and IoT devices.
• Industrial Controls: Durable performance in PLCs and motor drivers due to its wide operating temperature range.

Conclusion of 744C083220JP

The 744C083220JP balances compactness, reliability, and ease of integration, making it a versatile choice for legacy or niche applications. Its isolated resistors, robust packaging, and compliance with environmental standards cater to demanding industrial and consumer electronics. While obsolete, its design ensures compatibility with existing systems, offering a cost-effective solution for maintenance or low-volume production.
