766163101GP

766163101GP Description

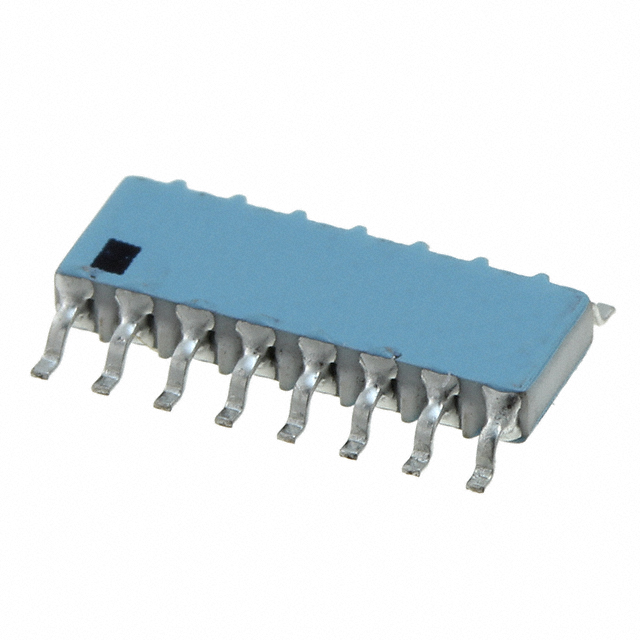

The 766163101GP from CTS Resistor Products (a division of CTS Corporation) is a high-performance 8-resistor network array designed for precision surface-mount applications. Encased in a compact 16-SOIC package with dimensions of 0.390" x 0.154" (9.90mm x 3.90mm) and a low-profile height of 0.069" (1.75mm), this device integrates isolated 100Ω resistors with a tight ±2% tolerance and a stable ±100ppm/°C temperature coefficient. Its 160mW power rating per element ensures reliable operation in demanding circuits, while ROHS3 compliance and REACH unaffected status make it environmentally friendly. Packaged in tubes for secure handling, it is ideal for automated assembly processes.

766163101GP Features

• 8 isolated resistors in a single 16-pin SOIC package, saving PCB space.
• 100Ω resistance with ±2% tolerance for consistent performance.
• Low TCR (±100ppm/°C) ensures stability across temperature variations.
• 160mW power dissipation per resistor, suitable for moderate-power applications.
• Surface-mount design with MSL 1 (Unlimited) moisture sensitivity, enabling flexible storage and handling.
• RoHS3 and REACH compliant, meeting stringent environmental standards.
• Wide operating temperature range (derived from CTS’s robust manufacturing standards).

766163101GP Applications

This resistor network excels in precision analog and digital circuits, including:

• Voltage dividers and pull-up/pull-down networks in microcontrollers and FPGAs.
• Signal conditioning for sensors and data acquisition systems.
• Impedance matching in communication interfaces (e.g., SPI, I²C).
• Industrial control systems where stable resistance values are critical.
• Consumer electronics, such as smart devices and wearables, due to its compact footprint.

Conclusion of 766163101GP

The 766163101GP stands out for its high density, reliability, and environmental compliance, making it a superior choice for engineers seeking a space-saving, precision resistor solution. Its isolated circuit design and low TCR cater to applications demanding minimal drift and consistent performance. Whether in industrial, automotive, or consumer electronics, this resistor network delivers optimal performance with streamlined assembly, backed by CTS Corporation’s proven quality.
