768143562G

768143562G Description

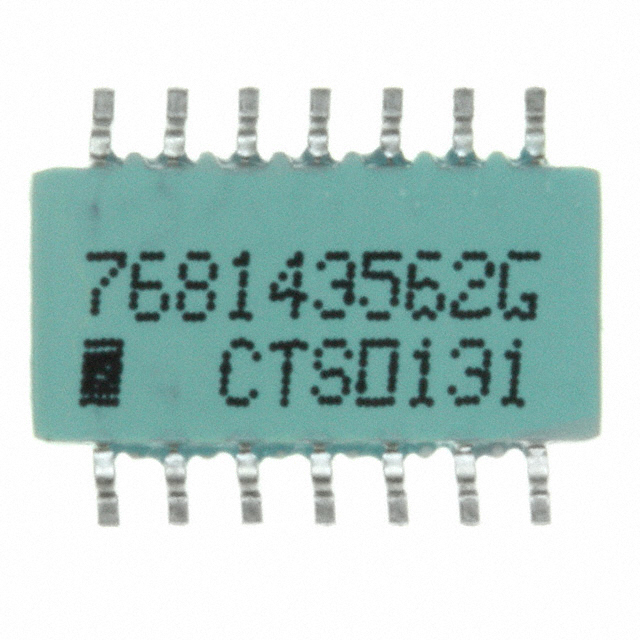

The 768143562G from CTS Resistor Products (a division of CTS Corporation) is a high-precision 7-resistor network in a compact 14-pin SOIC package. Designed for surface-mount applications, it features isolated resistors with a 5.6kΩ resistance, ±2% tolerance, and a low ±100ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. With a 200mW power rating per element and dimensions of 9.91mm x 5.59mm (0.390" x 0.220"), this RoHS3-compliant network is ideal for space-constrained designs requiring reliable resistance matching.

768143562G Features

• 7 isolated resistors in a single package, reducing component count and PCB footprint.
• 5.6kΩ ±2% tolerance for precision applications.
• Low TCR (±100ppm/°C) ensures minimal resistance drift over temperature.
• 200mW power rating per resistor for robust performance.
• 14-pin SOIC package with a 1.80mm (0.071") max height, suitable for high-density layouts.
• REACH unaffected and RoHS3 compliant, meeting environmental standards.
• MSL 1 (Unlimited) moisture sensitivity, allowing extended storage without baking.
• Obsolete status may require alternative sourcing for new designs but remains viable for legacy systems.

768143562G Applications

This resistor network excels in:

• Analog signal conditioning (e.g., voltage dividers, gain networks).
• Industrial control systems requiring stable resistance matching.
• Medical electronics where precision and reliability are critical.
• Telecommunications equipment for impedance matching and filtering.
• Legacy or maintenance applications due to its obsolete status but proven performance.

Conclusion of 768143562G

The 768143562G offers a balance of precision, compactness, and reliability, making it a strong choice for analog and mixed-signal designs. While obsolete, its low TCR, tight tolerance, and isolated circuit design provide advantages over generic resistor arrays. Engineers should evaluate alternative CTS 768-series models or equivalents for new designs but can leverage this part for repairs or legacy systems where consistency is paramount.
