768143823G

768143823G Description

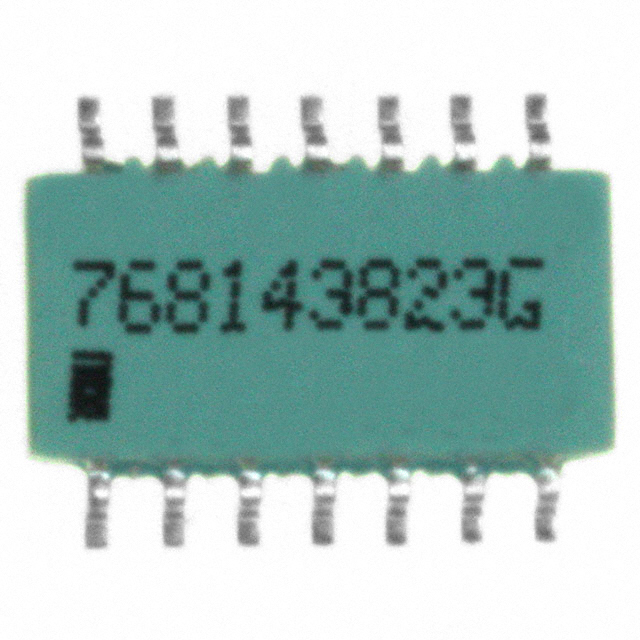

The 768143823G from CTS Resistor Products is a high-precision 7-resistor network housed in a compact 14-pin SOIC package, designed for surface-mount applications. With a 82kΩ resistance per element and a tight ±2% tolerance, this isolated resistor array ensures reliable performance in precision circuits. Its ±100ppm/°C temperature coefficient and 200mW power rating per element make it suitable for stable operation across varying environmental conditions. The device features a 0.390" x 0.220" (9.91mm x 5.59mm) footprint with a low-profile 1.80mm seated height, ideal for space-constrained PCB designs. Though marked Obsolete, it remains ROHS3 Compliant and REACH Unaffected, ensuring compliance with environmental regulations.

768143823G Features

• 7 isolated resistors in a single 14-pin SOIC package for compact circuit integration.
• 82kΩ resistance with ±2% tolerance for precision applications.
• Low TCR (±100ppm/°C) ensures minimal resistance drift over temperature.
• 200mW power dissipation per resistor for robust performance.
• Surface-mount design (9.91mm x 5.59mm) with MSL 1 (Unlimited) moisture sensitivity.
• ROHS3 Compliant and REACH Unaffected, meeting modern environmental standards.
• Wide operating temperature range (derived from MSL1 qualification).

768143823G Applications

This resistor network excels in analog signal conditioning, voltage division, and impedance matching circuits. Its isolated design is ideal for:

• Precision instrumentation (e.g., multimeters, sensor interfaces).
• Industrial control systems requiring stable resistance values.
• Medical electronics where consistent performance is critical.
• Telecommunication equipment for impedance balancing.
• Legacy system repairs due to its obsolete status but reliable specs.

Conclusion of 768143823G

The 768143823G offers a balance of precision, compactness, and reliability, making it a strong choice for engineers needing stable resistor networks in space-sensitive designs. While obsolete, its high tolerance, low TCR, and environmental compliance ensure continued utility in critical applications. Ideal for industrial, medical, and telecom systems, this component remains a dependable solution despite its phase-out status.
