74LVC2G32RA3-7

74LVC2G32RA3-7 Description

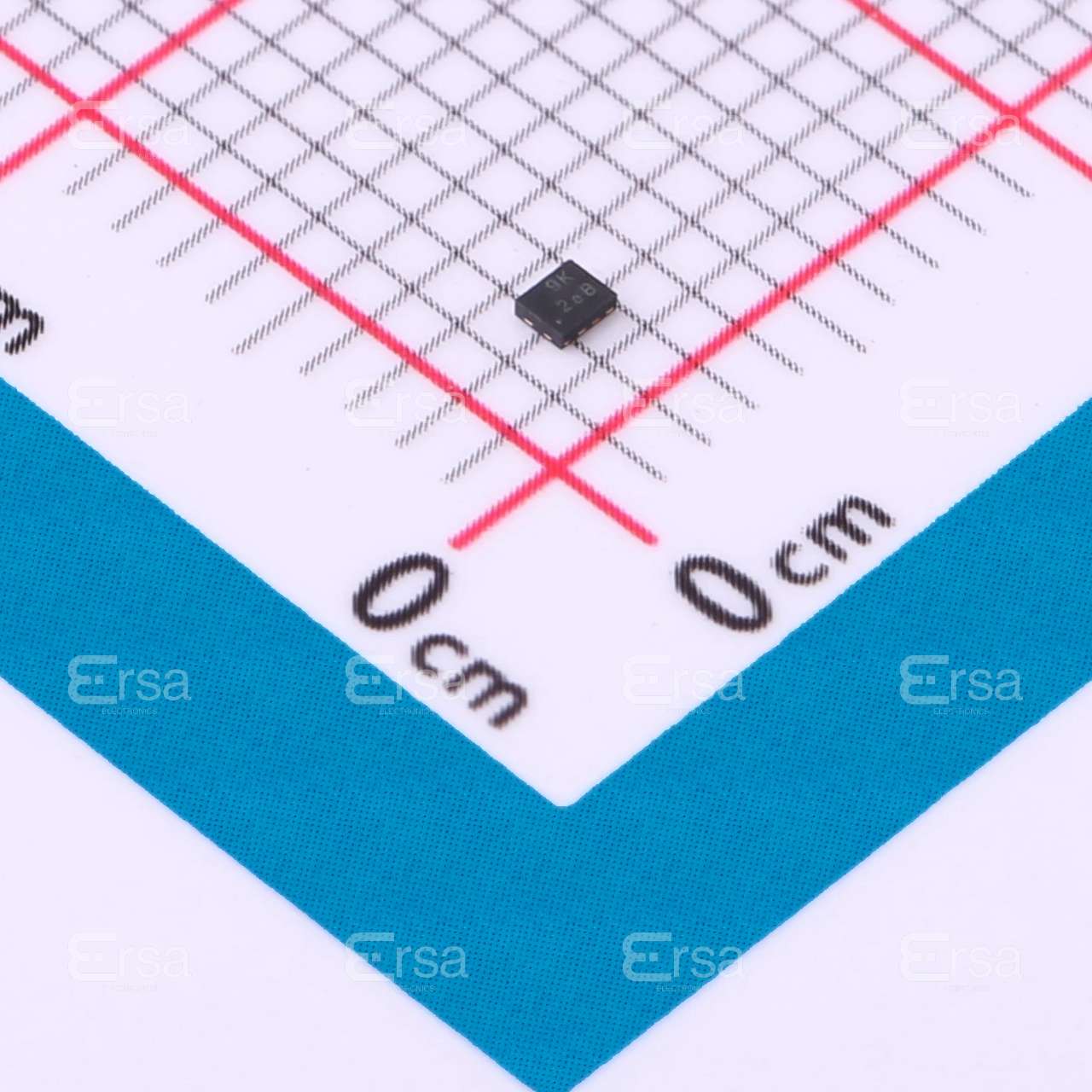

The 74LVC2G32RA3-7 is a high-performance OR gate IC designed by Diodes Incorporated, featuring a dual-channel, 2-input configuration. This device is part of the 74LVC series, known for its robustness and versatility in digital logic applications. The 74LVC2G32RA3-7 operates within a wide supply voltage range of 1.65V to 5.5V, making it suitable for various power supply configurations. It is housed in a surface-mount DFN1210-8 package, which is ideal for compact and space-constrained designs.

74LVC2G32RA3-7 Features

• Logic Function: The 74LVC2G32RA3-7 performs the OR logic function, which is essential for combining multiple input signals into a single output. This is particularly useful in control systems where multiple conditions need to be evaluated.
• Propagation Delay: With a maximum propagation delay of 4ns at 5V and a load capacitance of 50pF, the 74LVC2G32RA3-7 ensures fast signal processing, making it suitable for high-speed digital circuits.
• Power Efficiency: The device has a low quiescent current of up to 40 µA, which minimizes power consumption and heat generation, contributing to energy-efficient designs.
• Output Current Capability: The 74LVC2G32RA3-7 can drive significant loads with an output current capability of 32mA for both high and low states, ensuring reliable operation even under demanding conditions.
• Compliance and Packaging: The device is REACH unaffected and RoHS3 compliant, ensuring environmental sustainability. It is available in a tape and reel (TR) package, facilitating automated assembly processes.
• Moisture Sensitivity: With a moisture sensitivity level (MSL) of 1 (unlimited), the 74LVC2G32RA3-7 is highly resistant to moisture, making it suitable for a wide range of operating environments.

74LVC2G32RA3-7 Applications

The 74LVC2G32RA3-7 is ideal for a variety of applications due to its versatile design and performance characteristics. Some key applications include:

• Digital Signal Processing: The fast propagation delay and high output current capability make it suitable for processing digital signals in real-time applications.
• Control Systems: The OR gate function is essential in control systems where multiple inputs need to be evaluated to produce a single output signal.
• Consumer Electronics: The wide operating voltage range and low power consumption make it ideal for consumer electronics where power efficiency and compact design are critical.
• Automotive Electronics: The robustness and moisture resistance of the 74LVC2G32RA3-7 make it suitable for automotive applications where reliability and environmental resistance are paramount.

Conclusion of 74LVC2G32RA3-7

The 74LVC2G32RA3-7 is a highly versatile and efficient OR gate IC designed for a wide range of digital logic applications. Its fast propagation delay, low power consumption, and high output current capability make it an excellent choice for high-speed and power-efficient designs. The device's compliance with environmental standards and robust packaging ensure its suitability for various industrial and consumer applications. Whether used in digital signal processing, control systems, or consumer electronics, the 74LVC2G32RA3-7 offers reliable performance and significant advantages over similar models in the market.
