AUR9705AGD

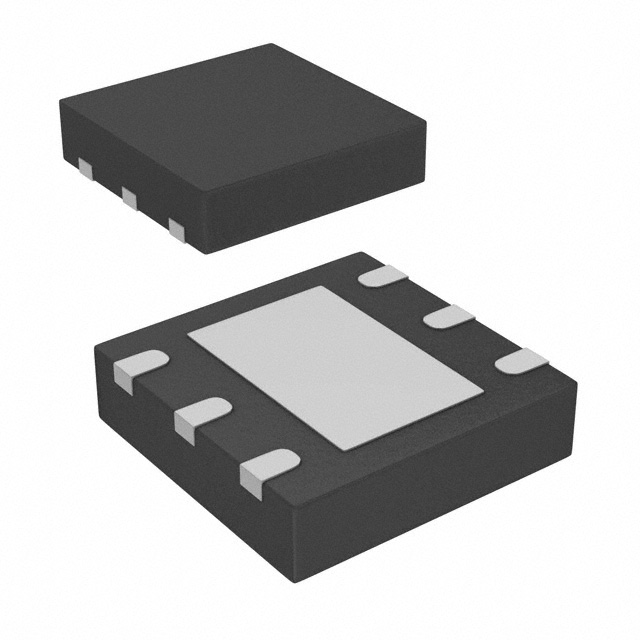

AUR9705AGD Description

The AUR9705AGD is a DC switching voltage regulator manufactured by Diodes Incorporated. It features an adjustable output type, with a maximum input voltage of 5.5V and a minimum input voltage of 2.5V. The output configuration is positive, with a minimum fixed output voltage of 1V and a maximum output voltage of 3.3V. The device has a single output and is designed for surface mount applications. It operates with a switching frequency of 1.5MHz and incorporates a synchronous rectifier for improved efficiency.

AUR9705AGD Features

• Adjustable output type for flexible voltage regulation
• Wide input voltage range (2.5V to 5.5V) for compatibility with various power sources
• Positive output configuration for compatibility with most electronic circuits
• Single output with a minimum fixed output voltage of 1V and a maximum output voltage of 3.3V
• Surface mount design for space-saving integration in compact devices
• 1.5MHz switching frequency for high efficiency and fast transient response
• Synchronous rectifier for improved efficiency and reduced power loss
• RoHS3 compliant and REACH unaffected, ensuring environmental compliance
• Moisture Sensitivity Level (MSL) of 1, allowing for unlimited storage time before reflow soldering
• Buck topology for simple and efficient voltage conversion
• Tape & Reel (TR) packaging for easy handling and automated assembly

AUR9705AGD Applications

The AUR9705AGD is ideal for applications requiring adjustable voltage regulation in a compact form factor. Some specific use cases include:

1. Portable electronic devices: Due to its small size and adjustable output, the AUR9705AGD is well-suited for powering portable electronics such as smartphones, tablets, and wearable devices.
2. Power supply designs: The AUR9705AGD can be used in power supply designs that require adjustable output voltages to accommodate different load requirements.
3. Industrial control systems: The device's wide input voltage range and adjustable output make it suitable for industrial control systems that require stable power regulation in varying input conditions.
4. Battery-powered devices: The AUR9705AGD can be used in battery-powered devices to efficiently convert and regulate voltage from rechargeable batteries.

Conclusion of AUR9705AGD

The AUR9705AGD is a versatile and efficient DC switching voltage regulator from Diodes Incorporated. Its adjustable output, wide input voltage range, and compact surface mount design make it an ideal choice for a variety of applications, including portable electronics, power supply designs, industrial control systems, and battery-powered devices. While the AUR9705AGD is currently listed as obsolete, its unique features and advantages make it a valuable component for existing designs that require its specific capabilities.
