PAM2316AGCADJ

PAM2316AGCADJ Description

The PAM2316AGCADJ is a highly efficient, adjustable output voltage regulator designed by Diodes Incorporated for a wide range of power management applications. This buck converter features a maximum input voltage of 5.5V and a minimum input voltage of 2.7V, making it suitable for systems with varying input voltage levels. It delivers a stable output current of up to 2A, ensuring reliable power delivery to demanding loads. The regulator supports an adjustable output voltage range from 1V to 3.3V, providing flexibility in system design. The PAM2316AGCADJ operates at a switching frequency of 2.5MHz, which allows for the use of smaller external components, reducing the overall footprint of the power solution.

PAM2316AGCADJ Features

• Adjustable Output Voltage: The PAM2316AGCADJ offers an adjustable output voltage range from 1V to 3.3V, providing flexibility to meet various system requirements.
• High Efficiency: With a switching frequency of 2.5MHz, the regulator ensures high efficiency and minimal power loss, making it ideal for battery-powered and energy-conscious applications.
• Synchronous Rectification: The inclusion of a synchronous rectifier enhances efficiency by reducing power dissipation, especially at higher load currents.
• Wide Input Voltage Range: The regulator supports an input voltage range from 2.7V to 5.5V, accommodating a variety of power sources.

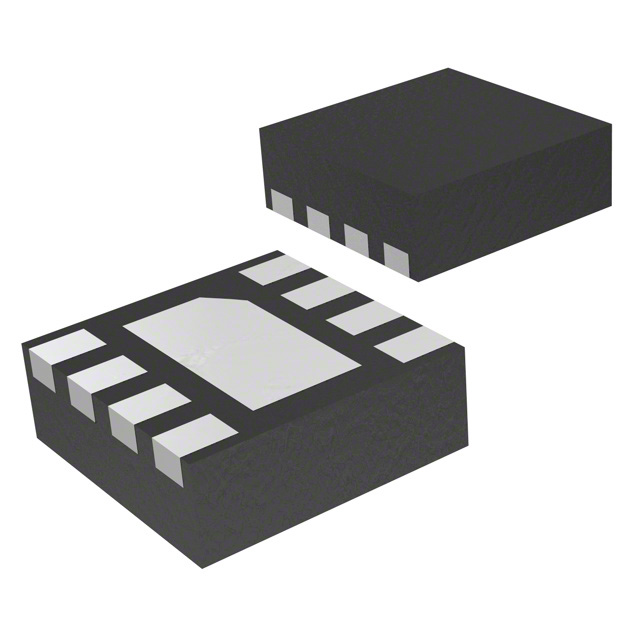

• Surface Mount Technology: The PAM2316AGCADJ is available in a surface mount package (Tape & Reel), which is ideal for automated assembly processes and compact designs.
• Compliance and Safety: The device is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and safety standards. It also has a moisture sensitivity level (MSL) of 1 (Unlimited), making it suitable for various manufacturing environments.
• Single Output Configuration: The regulator features a single positive output configuration, simplifying design and integration.

PAM2316AGCADJ Applications

The PAM2316AGCADJ is well-suited for a variety of applications where efficient power conversion and adjustable output voltage are critical. Some specific use cases include:

• Consumer Electronics: Ideal for powering portable devices, smartphones, tablets, and other consumer electronics that require efficient power management.
• Industrial Equipment: Suitable for industrial control systems, sensors, and IoT devices that operate within a wide input voltage range.
• Telecommunications: Can be used in base stations, routers, and other telecom equipment where reliable power delivery is essential.
• Automotive Electronics: Applicable in automotive systems, such as infotainment units and electronic control units, where space and efficiency are critical.

Conclusion of PAM2316AGCADJ

The PAM2316AGCADJ from Diodes Incorporated is a versatile and efficient buck converter that offers adjustable output voltage and high efficiency. Its wide input voltage range, synchronous rectification, and compact surface mount package make it an excellent choice for a variety of applications. While the product is now obsolete, it remains a benchmark for power management solutions, particularly in consumer electronics and industrial applications. For designers seeking a reliable and flexible power management IC, the PAM2316AGCADJ provides a robust solution that meets stringent performance and compliance standards.
