MC14077BDR2G

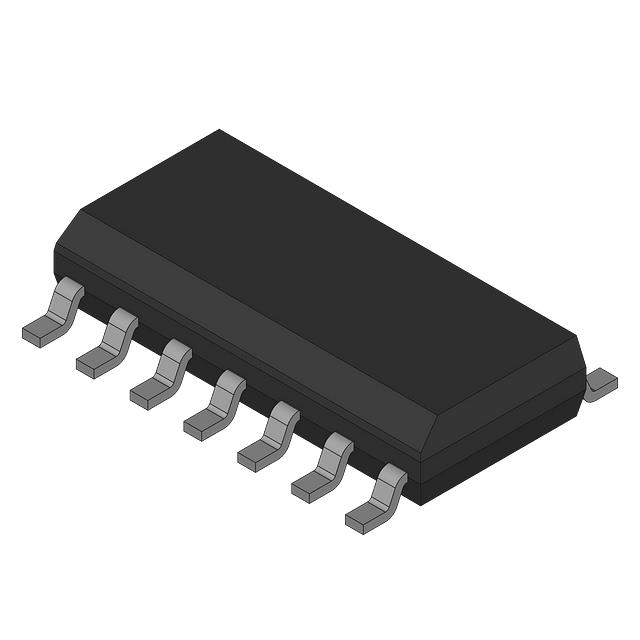

MC14077BDR2G Description

The MC14077BDR2G is a high-performance, 4-channel XNOR logic gate IC designed for a wide range of digital applications. Manufactured by Fairchild Semiconductor (now part of onsemi), this device is part of the 4000B series, known for its robustness and versatility. The MC14077BDR2G features a maximum propagation delay of 110ns at 15V with a load capacitance of 50pF, ensuring fast and reliable signal processing. It operates within a supply voltage range of 3V to 18V and is optimized for surface-mount applications, making it suitable for compact and space-constrained designs.

MC14077BDR2G Features

• Logic Type: XNOR (Exclusive NOR) gates, providing versatile digital logic functions.
• Supply Voltage Range: 3V to 18V, offering flexibility in power supply requirements.
• Input Logic Levels: Low (1.5V to 4V) and High (3.5V to 11V), ensuring compatibility with various digital systems.
• Propagation Delay: Maximum of 110ns at 15V and 50pF, enabling high-speed operations.
• Current Specifications: Quiescent current of up to 1µA and output current of 8.8mA for both high and low states, ensuring efficient power usage.
• Number of Circuits: Four independent XNOR gates, each with two inputs, providing a total of eight input connections.
• Mounting Type: Surface mount, ideal for modern, compact electronic designs.
• Package: Bulk packaging, suitable for high-volume production and inventory management.
• Product Status: Active, ensuring continued availability and support.

MC14077BDR2G Applications

The MC14077BDR2G is ideal for a variety of applications where digital logic processing is required. Its wide voltage range and low propagation delay make it suitable for:

• Digital Signal Processing: Efficiently processing digital signals in communication systems, data transmission, and control circuits.
• Consumer Electronics: Used in devices such as smartphones, tablets, and home automation systems for logic operations.
• Automotive Electronics: Implementing digital logic in vehicle control units, infotainment systems, and safety features.
• Industrial Automation: Enabling reliable digital logic in PLCs, sensors, and control systems.
• Medical Devices: Utilized in diagnostic equipment, monitoring systems, and medical instrumentation for precise logic functions.

Conclusion of MC14077BDR2G

The MC14077BDR2G stands out as a reliable and versatile XNOR logic gate IC, offering a combination of high performance and flexibility. Its low propagation delay and wide operating voltage range make it suitable for a broad range of applications, from consumer electronics to industrial automation. The surface-mount design and bulk packaging further enhance its appeal for modern, compact, and high-volume production environments. With its active product status and support from Fairchild Semiconductor (onsemi), the MC14077BDR2G is an excellent choice for engineers and designers seeking a robust and efficient digital logic solution.
