Harwin
H8504-05
324-H8504-05
PDF Datasheet

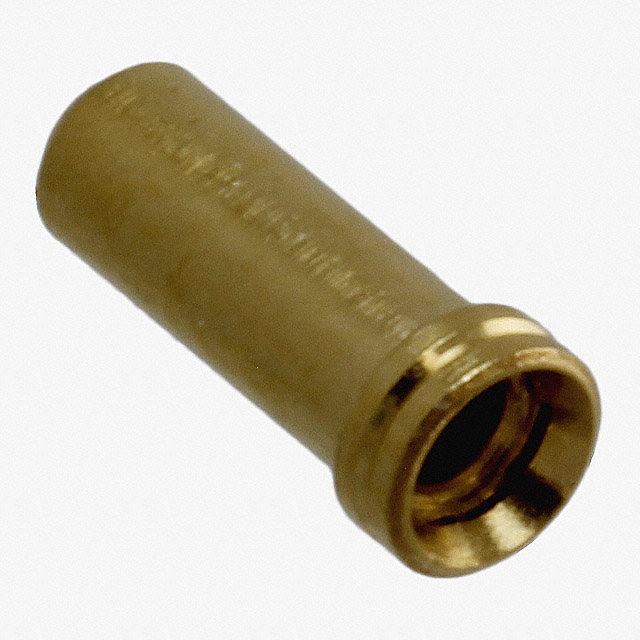

PC Board Socket for Ã?0.80mm Pin, gold clip + gold shell
10 Weeks
Why Choose Us?
Professional Platform
B2B & B2C purchasingDelivery at full speed
1-2 days deliveryWide variety
Original manufacturers365 days guarantee
Responsible quality
.png)
Tech Specifications
Contact Material
Copper
Contact Plating
Gold
Material
Brass
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Mounting Hole Diameter
2.01mm
Number of Contacts
1
H8504-05 Description
Pin Receptacle Connector 0.024" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Solder
FAQ
What is the mounting type of H8504-05?
H8504-05 uses a Through Hole mounting style based on the listed product specifications.
What is H8504-05?
What operating temperature range does H8504-05 support?
Is H8504-05 currently in stock?
What package or case is H8504-05 available in?
