IRL40SC209

IRL40SC209 Description

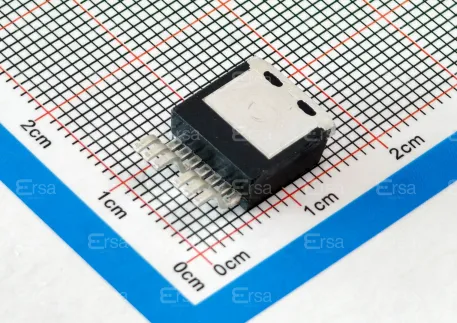

The IRL40SC209 is a high-performance N-Channel MOSFET from Infineon Technologies, designed for demanding applications requiring high efficiency and reliability. With a drain-to-source voltage (Vdss) of 40V and a continuous drain current (Id) of 478A at 25°C, this device delivers exceptional performance in a compact D2PAK package. The IRL40SC209 features a low on-resistance (Rds On) of 0.8mOhm at 100A and 10V, ensuring minimal power dissipation and high efficiency in your design.

IRL40SC209 Features

• High Input Capacitance (Ciss): The IRL40SC209 boasts an impressive input capacitance of 15270 pF at 25V, enabling faster switching speeds and improved high-frequency performance.
• Low Gate Charge (Qg): With a maximum gate charge of 267 nC at 4.5V, this MOSFET reduces switching losses and improves overall efficiency.
• Robust Thermal Performance: The IRL40SC209 can handle a maximum power dissipation of 375W at the case temperature (Tc), making it suitable for high-power applications.
• Compliance with Industry Standards: This device is REACH unaffected, RoHS3 compliant, and moisture sensitivity level (MSL) 1, ensuring compliance with environmental and safety regulations.
• Versatile Drive Voltage: The IRL40SC209 operates with a maximum gate-source voltage (Vgs) of ±20V and a drive voltage of 4.5V to 10V, providing flexibility in various applications.

IRL40SC209 Applications

The IRL40SC209 is ideal for a wide range of applications where high efficiency, power handling, and reliability are critical:

1. Industrial Motor Control: Its high current and voltage ratings make it suitable for motor drives in industrial automation and robotics.
2. Power Supplies: The IRL40SC209's low on-resistance and high power dissipation capabilities make it an excellent choice for power supply designs.
3. Renewable Energy Systems: This MOSFET can be used in solar inverters and wind energy systems, where high efficiency and reliability are essential.
4. Electric Vehicles (EVs): The IRL40SC209's high current and voltage ratings make it suitable for EV motor controllers and battery management systems.

Conclusion of IRL40SC209

The IRL40SC209 from Infineon Technologies is a powerful and versatile N-Channel MOSFET, offering high efficiency, robust performance, and compliance with industry standards. Its unique combination of high input capacitance, low gate charge, and excellent thermal performance make it an ideal choice for demanding applications in industrial motor control, power supplies, renewable energy systems, and electric vehicles. With its advanced features and proven reliability, the IRL40SC209 is a trusted solution for engineers looking to optimize their designs for performance and efficiency.
