Infineon Technologies

S29AL016J70BFA023

S29AL016J70BFA023 Description

The S29AL016J70BFA023 is a high-performance, 16Mbit Flash memory IC designed by Infineon Technologies. This memory chip features a parallel memory interface and is organized as 2M x 8 or 1M x 16, offering flexibility in system design. The device operates within a supply voltage range of 2.7V to 3.6V and boasts an access time of 70 nanoseconds, ensuring rapid data retrieval. The write cycle time for both word and page operations is also 70 nanoseconds, making it highly efficient for write-intensive applications.

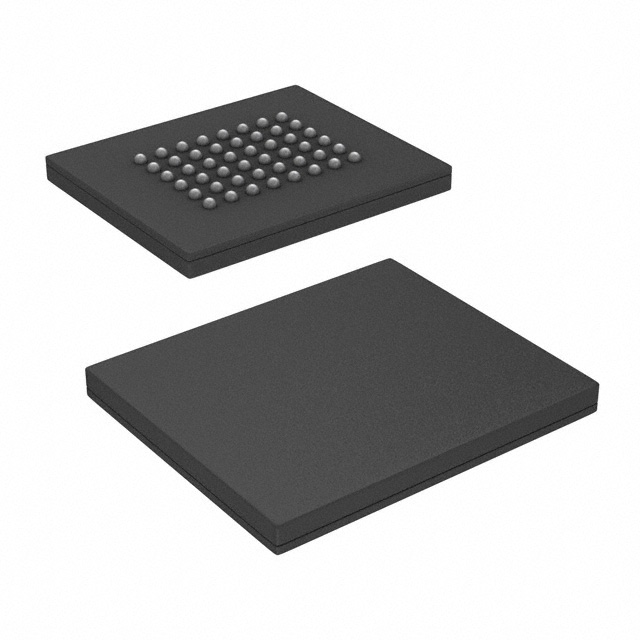

The S29AL016J70BFA023 is packaged in a 48FBGA format and is available in tape and reel (TR) packaging, which is ideal for surface mount applications. It is classified under HTSUS code 8542.32.0071 and has a moisture sensitivity level (MSL) of 3, allowing for a 168-hour exposure time. The product is REACH unaffected and RoHS3 compliant, ensuring it meets stringent environmental and safety standards.

S29AL016J70BFA023 Features

• Memory Organization: The S29AL016J70BFA023 offers a memory organization of 2M x 8 or 1M x 16, providing flexibility in system design and addressing requirements.
• Access Time: With an access time of 70 nanoseconds, this Flash memory ensures rapid data retrieval, making it suitable for applications requiring high-speed data access.
• Write Cycle Time: The write cycle time for both word and page operations is 70 nanoseconds, ensuring efficient write operations and minimizing latency.
• Supply Voltage Range: The device operates within a supply voltage range of 2.7V to 3.6V, providing compatibility with a wide range of power supplies.
• Packaging: The 48FBGA package format and tape and reel (TR) packaging make it ideal for surface mount applications, ensuring ease of integration into modern electronic systems.
• Environmental Compliance: The S29AL016J70BFA023 is REACH unaffected and RoHS3 compliant, ensuring it meets stringent environmental and safety standards.
• Moisture Sensitivity Level: With an MSL of 3 (168 hours), the device is well-suited for environments with varying humidity levels, ensuring reliability and durability.

S29AL016J70BFA023 Applications

The S29AL016J70BFA023 is ideal for a variety of applications requiring high-speed, reliable Flash memory solutions. Some specific use cases include:

• Embedded Systems: The device's high-speed access and write capabilities make it suitable for embedded systems where rapid data retrieval and storage are critical.
• Industrial Automation: The robustness and compliance with environmental standards make it ideal for industrial applications where reliability and durability are paramount.
• Telecommunications: The S29AL016J70BFA023 can be used in telecommunication equipment for storing firmware and configuration data, ensuring quick access and updates.
• Consumer Electronics: The device's small form factor and surface mount compatibility make it suitable for consumer electronics where space is a premium.

Conclusion of S29AL016J70BFA023

The S29AL016J70BFA023 from Infineon Technologies is a high-performance Flash memory IC that offers a combination of speed, flexibility, and reliability. Its 70 nanosecond access and write cycle times, along with its flexible memory organization and surface mount compatibility, make it an excellent choice for a wide range of applications. The device's compliance with environmental and safety standards further enhances its appeal in the electronics industry. Whether used in embedded systems, industrial automation, telecommunications, or consumer electronics, the S29AL016J70BFA023 provides a reliable and efficient Flash memory solution.
