S29CD016J0PQFM010

S29CD016J0PQFM010 Description

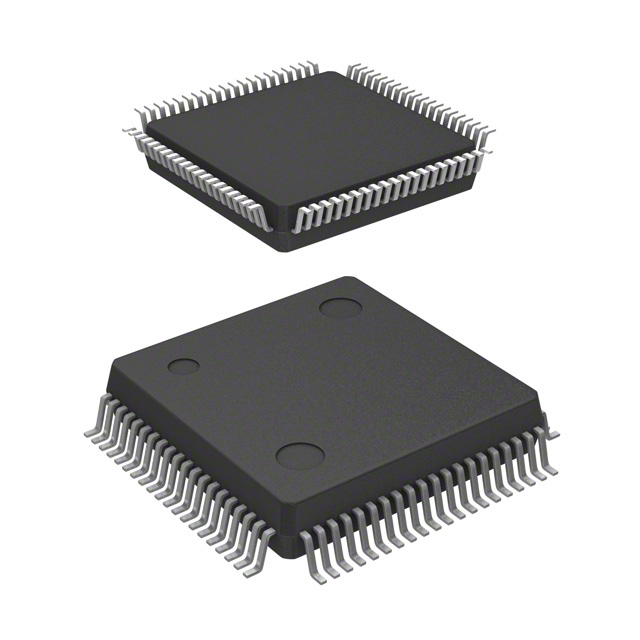

The S29CD016J0PQFM010 is a 16Mbit Flash memory IC designed by Infineon Technologies, featuring a parallel memory interface and a 512K x 32 memory organization. This device operates within a supply voltage range of 1.65V to 2.75V and offers a clock frequency of 66 MHz, ensuring high-speed data access. The access time is rated at 54 ns, with a write cycle time of 60 ns for word and page operations. It is packaged in an 80PQFP format, suitable for surface mount applications, and is categorized under Memory ICs Products.

S29CD016J0PQFM010 Features

• High-Speed Performance: With a clock frequency of 66 MHz and an access time of 54 ns, the S29CD016J0PQFM010 ensures rapid data retrieval, making it ideal for applications requiring quick data processing.
• Wide Voltage Range: The device operates within a supply voltage range of 1.65V to 2.75V, providing flexibility in power supply design and compatibility with various systems.
• Robust Memory Organization: The 512K x 32 memory organization and 16Mbit memory size offer substantial storage capacity, suitable for complex data storage needs.
• Parallel Interface: The parallel memory interface allows for efficient data transfer and integration with existing parallel bus architectures.
• Surface Mount Compatibility: The 80PQFP package supports surface mount technology, enabling compact and reliable PCB designs.
• Compliance and Safety: The S29CD016J0PQFM010 is REACH unaffected and RoHS3 compliant, ensuring environmental and safety standards are met.
• Moisture Sensitivity Level: Rated at MSL 3 (168 hours), the device is suitable for manufacturing processes involving reflow soldering.

S29CD016J0PQFM010 Applications

The S29CD016J0PQFM010 is well-suited for a variety of applications due to its high-speed performance and substantial memory capacity. Key applications include:

• Embedded Systems: Ideal for embedded systems requiring fast data access and reliable storage, such as automotive control units, industrial automation systems, and IoT devices.
• Telecommunications: Suitable for telecom equipment where quick data retrieval and storage are critical, such as base stations and network routers.
• Consumer Electronics: Applicable in consumer electronics like digital cameras, gaming consoles, and smart TVs, where high-speed data processing and storage are essential.
• Medical Devices: Can be used in medical devices that require reliable data storage and quick access, such as diagnostic equipment and patient monitoring systems.

Conclusion of S29CD016J0PQFM010

The S29CD016J0PQFM010 is a high-performance Flash memory IC that offers significant advantages over similar models due to its wide voltage range, high-speed access times, and robust memory organization. Its compliance with environmental and safety standards, along with its compatibility with surface mount technology, makes it a reliable choice for various applications. Although the product is now obsolete, it remains a valuable component for existing systems and legacy designs. Infineon Technologies' commitment to quality ensures that the S29CD016J0PQFM010 continues to meet the demands of modern electronics.
