Intel

5CSEBA5U19C7SN

5CSEBA5U19C7SN Description

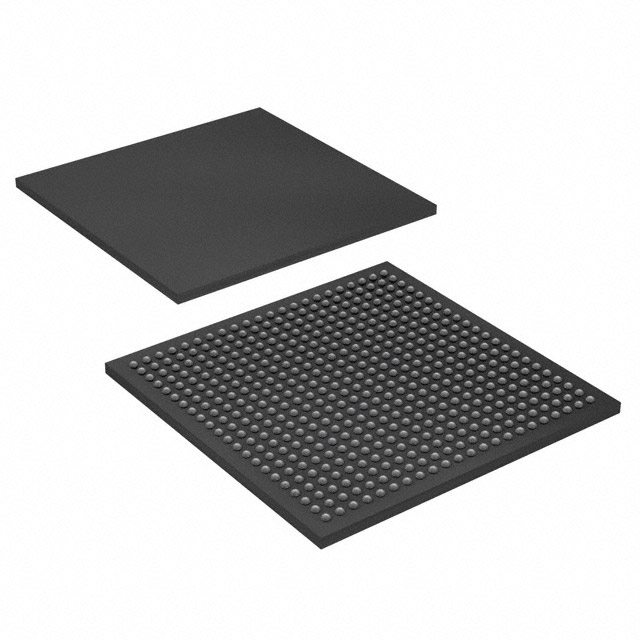

The 5CSEBA5U19C7SN is a high-performance System on Chip (SoC) developed by Intel, featuring a Cortex-A9 processor core operating at 800MHz. This SoC is part of the Cyclone® V SE series, designed for applications requiring robust processing capabilities and extensive connectivity options. The 5CSEBA5U19C7SN is housed in a 484-pin BGA package, ensuring compact integration into various electronic systems.

5CSEBA5U19C7SN Features

• Performance and Architecture: The 5CSEBA5U19C7SN is powered by a Cortex-A9 processor core running at 800MHz, providing efficient processing capabilities. It features a dual-architecture design, combining a Microcontroller Unit (MCU) with a Field-Programmable Gate Array (FPGA), allowing for flexible and customizable hardware configurations.
• Memory and Storage: Equipped with 64KB of RAM, the SoC offers sufficient memory for handling complex tasks and data storage requirements.
• Connectivity: The 5CSEBA5U19C7SN boasts a wide range of connectivity options, including CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. This extensive connectivity suite makes it ideal for applications requiring multiple communication protocols.
• Peripherals: The SoC includes essential peripherals such as Direct Memory Access (DMA), Power-On Reset (POR), and Watchdog Timer (WDT), enhancing system reliability and functionality.
• Operating Conditions: The 5CSEBA5U19C7SN operates within a temperature range of 0°C to 85°C (TJ), making it suitable for a variety of industrial and consumer applications.
• Compliance and Status: The product is REACH unaffected and RoHS compliant, ensuring it meets environmental and safety standards. It is also classified under ECCN 3A001A7B and HTSUS 8542.39.0001.
• Packaging and Sensitivity: The SoC is packaged in a tray format and has a Moisture Sensitivity Level (MSL) of 3 (168 Hours), ensuring it is protected during storage and handling.

5CSEBA5U19C7SN Applications

The 5CSEBA5U19C7SN is ideal for a variety of applications due to its versatile architecture and extensive connectivity options. Key applications include:

• Industrial Automation: The SoC's robust performance and connectivity options make it suitable for controlling and monitoring industrial processes.
• Embedded Systems: Its compact size and efficient processing capabilities make it ideal for embedded systems in consumer electronics, medical devices, and automotive applications.
• Communication Systems: The extensive connectivity suite allows for seamless integration into communication systems, including networking equipment and IoT devices.
• Consumer Electronics: The SoC's flexibility and performance make it a strong candidate for use in smart home devices, wearables, and other consumer electronics requiring high processing power and low power consumption.

Conclusion of 5CSEBA5U19C7SN

The 5CSEBA5U19C7SN is a versatile and high-performance SoC that offers a unique combination of processing power, connectivity, and flexibility. Its dual-architecture design and extensive peripheral support make it a standout choice for a wide range of applications. Whether used in industrial automation, embedded systems, or consumer electronics, the 5CSEBA5U19C7SN provides reliable performance and extensive functionality, making it a valuable component for modern electronic designs.
