Intel

EN63A0QA

External/Internal DC DC Converters

EN63A0QA Description

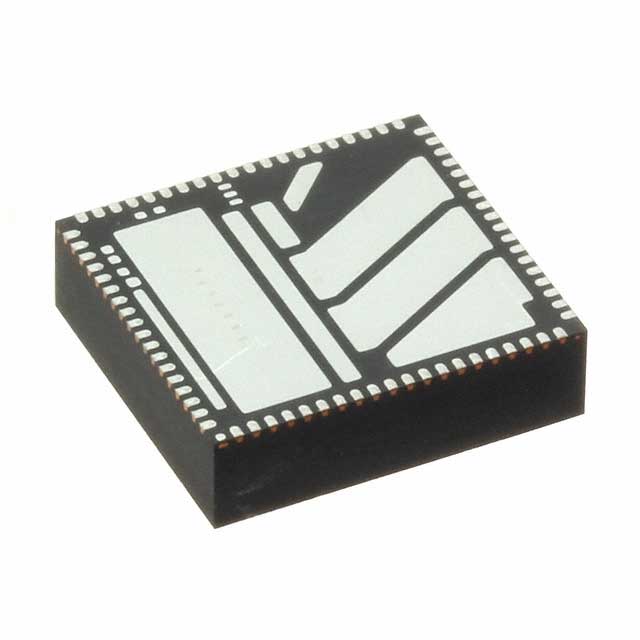

The EN63A0QA from Intel's Enpirion® series is a high-efficiency, single-output DC-DC converter designed for commercial ITE applications. With an input voltage range of 2.5V to 6.6V and an adjustable output voltage of 0.6V to 5.4V, this compact converter delivers a robust 12A maximum output current while achieving an impressive 96% efficiency. Its surface-mount design and ultra-compact dimensions (11.0mm x 10.0mm x 3.0mm) make it ideal for space-constrained applications. Although marked as Obsolete, it remains a reliable choice for legacy designs due to its advanced protection features and compliance with RoHS and REACH standards.

EN63A0QA Features

• High Efficiency (96%): Minimizes power loss and thermal dissipation, enhancing system reliability.
• Comprehensive Protection: Includes Over-Current Protection (OCP), Over-Temperature Protection (OTP), Short-Circuit Protection (SCP), and Under-Voltage Lockout (UVLO) for robust operation.
• Compact Footprint: Small 0.43" x 0.39" size with a low-profile 0.12" height, suitable for high-density PCB layouts.
• Wide Input/Output Range: Supports flexible power supply configurations.
• Commercial-Grade Reliability: MSL 3 (168 Hours) moisture sensitivity ensures durability in manufacturing environments.
• Tape & Reel Packaging: Facilitates automated assembly processes.

EN63A0QA Applications

The EN63A0QA is optimized for commercial IT equipment, including:

• Embedded Systems: Low-power processors, FPGAs, and ASICs requiring precise voltage regulation.
• Networking Hardware: Switches, routers, and servers needing high-current, compact power solutions.
• Industrial Automation: Control systems and sensors benefiting from its wide input range and protections.
• Legacy Designs: Suitable for maintaining or upgrading older systems due to its obsolete-but-reliable status.

Conclusion of EN63A0QA

The EN63A0QA stands out for its high efficiency, compact form factor, and advanced protection mechanisms, making it a versatile choice for commercial power applications. While no longer in active production, its performance and compliance with environmental standards ensure continued suitability for legacy and space-constrained designs. Engineers seeking a proven, high-current DC-DC converter with robust features will find this Intel Enpirion® model a dependable solution.

EN63A0QA Documents

Download datasheets and manufacturer documentation for EN63A0QA
