Intersil

DG413DY

DG413DY Description

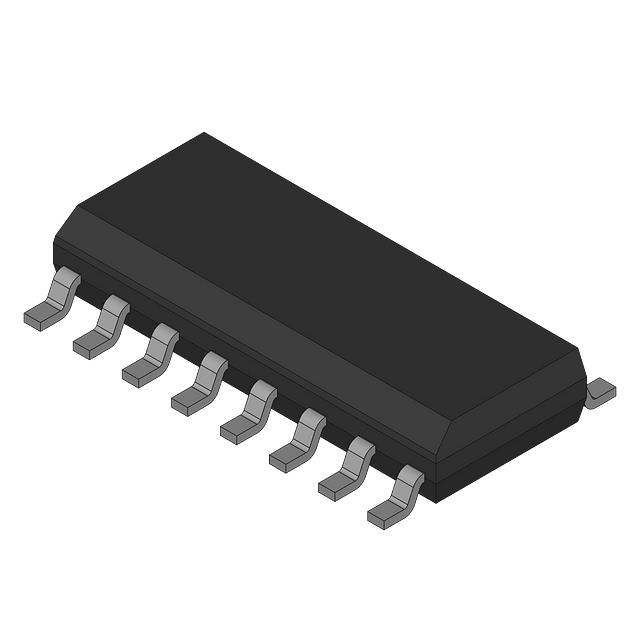

The DG413DY is a high-performance, single-pole, single-throw (SPST) analog switch designed by Intersil, a leading manufacturer of advanced semiconductor solutions. This IC features four independent SPST switches in a single package, making it ideal for a variety of applications that require efficient signal routing and switching. The DG413DY is housed in a 16-SOIC package, which is suitable for surface-mount applications, ensuring ease of integration into compact electronic designs.

DG413DY Features

• Low Leakage Current: The DG413DY boasts a maximum leakage current of 250pA, ensuring minimal signal degradation and high reliability in low-power applications.
• Wide Supply Voltage Range: This IC supports a dual supply voltage range of ±5V to ±20V and a single supply voltage range of 5V to 44V, providing flexibility for various power supply configurations.
• Low On-State Resistance: With a maximum on-state resistance of 35Ohm, the DG413DY ensures minimal power loss and high efficiency during signal transmission.
• Low Channel Capacitance: The channel capacitance of 9pF for both CS(off) and CD(off) ensures fast switching times and minimal signal distortion.
• Low Charge Injection: The DG413DY has a charge injection of 5pC, which is critical for maintaining signal integrity, especially in high-frequency applications.
• Fast Switching Times: The switch times are 175ns for turn-on and 145ns for turn-off, enabling rapid signal switching and high-speed operation.
• Multiplexer/Demultiplexer Circuit: The 1:1 multiplexer/demultiplexer circuit allows for efficient signal routing and control.
• Obsolete Status: While the DG413DY is now obsolete, it remains a reliable choice for existing designs and legacy systems where its specific features are still required.

DG413DY Applications

The DG413DY is well-suited for a variety of applications that demand high-performance analog switching. Some specific use cases include:

• Signal Routing: Ideal for routing analog signals in complex electronic systems, such as test and measurement equipment, where precise control over signal paths is essential.
• Audio Systems: Suitable for switching audio signals in high-fidelity audio equipment, ensuring minimal signal loss and distortion.
• Telecommunications: Used in telecommunication systems for switching and routing signals, providing reliable performance in demanding environments.
• Medical Equipment: Applicable in medical devices that require precise signal control and low leakage current to ensure patient safety and accurate measurements.
• Industrial Control: Effective in industrial control systems where robustness and reliability are paramount, and the ability to switch signals quickly and efficiently is required.

Conclusion of DG413DY

The DG413DY is a versatile and high-performance analog switch that offers significant benefits in terms of low leakage current, low on-state resistance, and fast switching times. Its wide supply voltage range and low channel capacitance make it suitable for a variety of applications across different industries. Despite its obsolete status, the DG413DY remains a reliable choice for existing designs and legacy systems where its unique features and performance benefits are still highly valued.
