CPC5611A

CPC5611A Description

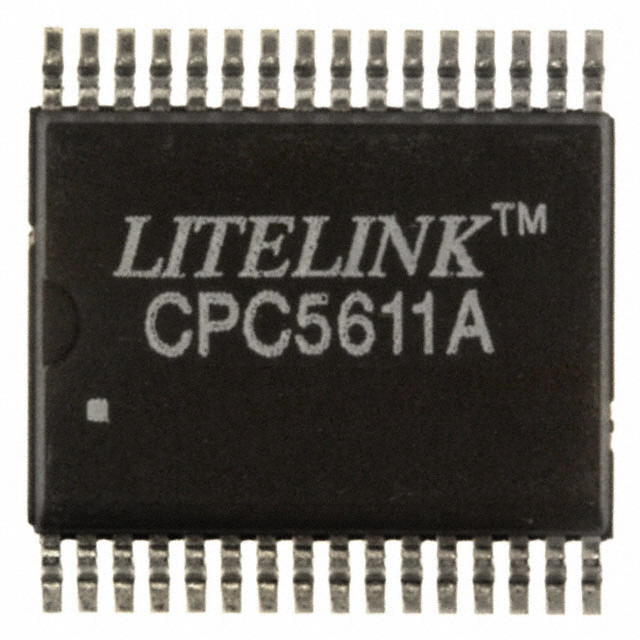

The CPC5611A is a Data Access Arrangement (DAA) Interface IC Chip, part of the LITELINK® II series, designed and manufactured by IXYS Integrated Circuits Division, a division of IXYS / Littelfuse. This component is specifically engineered for telecommunications applications, offering robust performance and reliability. The CPC5611A is housed in a Tube package and is available in a 32SOIC form factor, making it suitable for surface mount applications. Despite its obsolescence, the CPC5611A remains a valuable component for legacy systems and specific applications requiring its unique capabilities.

CPC5611A Features

• Operating Temperature Range: The CPC5611A operates within a temperature range of 0°C to 85°C, ensuring stability and performance in a variety of environmental conditions.
• Power and Current Specifications: It requires a supply voltage between 3V and 5.5V and draws a supply current of 10mA, consuming a power of 1W. These specifications make it energy-efficient and suitable for low-power applications.
• Mounting Type: The surface mount technology (SMT) allows for easy integration into compact and high-density PCB designs.
• Compliance and Safety: The CPC5611A is classified under ECCN EAR99 and is REACH unaffected, ensuring compliance with international regulations and safety standards.
• Moisture Sensitivity Level: With an MSL of 3 (168 hours), the CPC5611A is designed to withstand moisture exposure during manufacturing processes, reducing the risk of damage.
• Circuitry: It features a single circuit, which simplifies design and integration while maintaining high performance.

CPC5611A Applications

The CPC5611A is ideal for a range of telecommunications applications, particularly where a Data Access Arrangement (DAA) is required. Its key applications include:

• Telecom Equipment: Ideal for modems, routers, and other telecom devices that require reliable data access and transmission.
• Legacy Systems: Despite its obsolescence, the CPC5611A is crucial for maintaining and upgrading legacy systems that rely on its specific DAA functionality.
• Industrial Communication: Suitable for industrial applications where robust and reliable data transmission is essential, such as in SCADA systems and industrial automation.

Conclusion of CPC5611A

The CPC5611A, part of the LITELINK® II series, is a versatile and reliable DAA Interface IC Chip designed for telecommunications applications. Its wide operating temperature range, low power consumption, and surface mount compatibility make it suitable for a variety of environments and compact designs. Although it is now obsolete, the CPC5611A remains a critical component for legacy systems and specific applications requiring its unique capabilities. Its compliance with international regulations and safety standards further enhances its reliability and suitability for critical applications.
