Micro Crystal

RV-3149-C3-32.768KHZ-OPTION-A-TA-QC

Real Time Clocks ICs

RV-3149-C3-32.768KHZ-OPTION-A-TA-QC Description

The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC is a highly versatile and reliable Real-Time Clock (RTC) and Calendar IC designed by Micro Crystal AG. This advanced clock/timing IC is engineered to provide precise timekeeping and calendar functions, making it an essential component for a wide range of electronic devices. The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC features a robust set of specifications and capabilities that ensure accurate and efficient operation.

This IC operates within a wide supply voltage range of 1.3V to 5.5V, making it compatible with various power supply configurations. It boasts an extremely low timekeeping current of 1µA at 3V, which is ideal for battery-operated devices and applications where power consumption is a critical concern. The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC supports both 12-hour and 24-hour time formats, providing flexibility in time display options.

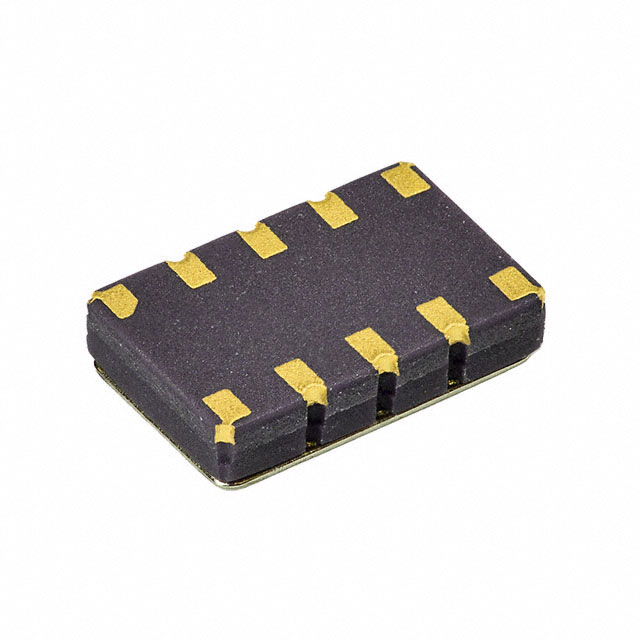

The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC is housed in a1 0SON package and is available in Tape & Reel (TR) packaging, which is suitable for surface-mount applications. This packaging ensures ease of integration into modern PCB designs and facilitates automated assembly processes. The device is REACH unaffected and ROHS3 compliant, adhering to stringent environmental and safety standards.

RV-3149-C3-32.768KHZ-OPTION-A-TA-QC Features

The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC offers a comprehensive set of features that enhance its functionality and usability:

• Alarm Functionality: The built-in alarm feature allows for precise scheduling and event triggering, making it suitable for applications requiring timed operations.
• EEPROM and RAM: The device includes 2B EEPROM and 8B RAM, providing additional storage for user data and configuration settings.
• Leap Year Calculation: The calendar function automatically accounts for leap years, ensuring accurate date tracking over extended periods.
• Programmable Clock Output: This feature allows for flexible clock signal generation, which can be customized to meet specific application requirements.
• Temperature and Timer Functions: The inclusion of temperature and timer functions enables advanced monitoring and control capabilities.
• Trickle Charger: The integrated trickle charger supports battery backup, ensuring continuous operation even in the event of power loss.

RV-3149-C3-32.768KHZ-OPTION-A-TA-QC Applications

The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC is well-suited for a variety of applications across different industries:

• Consumer Electronics: Ideal for devices such as digital clocks, smartwatches, and home automation systems where accurate timekeeping and calendar functions are essential.
• Industrial Automation: Suitable for control systems, monitoring devices, and data loggers that require precise time synchronization and event scheduling.
• Telecommunications: Can be used in network equipment and communication devices for time-stamping and synchronization purposes.
• Medical Devices: Applicable in medical equipment where accurate time tracking and data logging are critical for patient monitoring and device operation.

Conclusion of RV-3149-C3-32.768KHZ-OPTION-A-TA-QC

The RV-3149-C3-32.768KHZ-OPTION-A-TA-QC from Micro Crystal AG is a high-performance Real-Time Clock and Calendar IC that stands out due to its extensive feature set and robust performance. Its low power consumption, wide voltage range, and advanced functionalities such as alarm, EEPROM, and programmable clock output make it a superior choice over similar models. The device's compliance with environmental standards and its surface-mount package further enhance its appeal for modern electronic designs. Whether used in consumer electronics, industrial automation, telecommunications, or medical devices, the RV-3149-C3-32.768KHZ-OPTION-A-TA-QC delivers reliable and precise timekeeping, ensuring accurate and efficient operation in a wide range of applications.

RV-3149-C3-32.768KHZ-OPTION-A-TA-QC Documents

Download datasheets and manufacturer documentation for RV-3149-C3-32.768KHZ-OPTION-A-TA-QC

Datasheets :

RV-3149-C3 Datasheet

Manuals :

RV-3149-C3 Appl Manual

Application Notes :

Real-Time Clock Module Whitepaper

HTML Datasheet :

RV-3149-C3 Datasheet

Environmental Information :

Cert of Environmental Compliance - RV Series
