Microchip Technology

24CS512T-E/Q6B66KVAO

Memory ICs Products

24CS512T-E/Q6B66KVAO Description

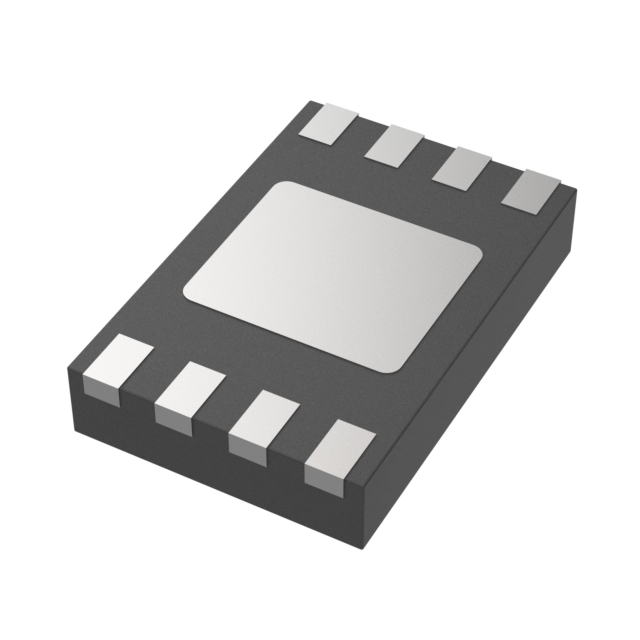

The 24CS512T-E/Q6B66KVAO is a 512Kbit EEPROM memory IC chip manufactured by Microchip Technology. This device is designed for surface mount applications and features a wettable flank package, ensuring reliable soldering and ease of manufacturing. With a memory organization of 64K x 8, it offers a robust storage capacity suitable for a variety of embedded systems and applications. The chip operates within a wide voltage range of 1.7V to 5.5V, making it versatile for different power supply configurations. It supports an I2C memory interface, facilitating straightforward communication with microcontrollers and other system components.

24CS512T-E/Q6B66KVAO Features

• Memory Size and Organization: The 24CS512T-E/Q6B66KVAO provides a memory size of 512Kbit, organized as 64K x 8, offering ample storage for data logging, parameters configuration, and firmware storage.
• Clock Frequency: It supports a clock frequency of up to 3.4 MHz, ensuring fast data transfer rates and efficient operation in high-speed systems.
• Access Time: With an access time of 400 ns, this EEPROM chip delivers quick read operations, minimizing system latency.
• Write Cycle Time: The write cycle time for word and page operations is 5ms, allowing for efficient data writing without compromising system performance.
• Voltage Range: The wide operating voltage range of 1.7V to 5.5V makes it suitable for a variety of power supply environments, enhancing its versatility.
• Mounting Type: The surface mount, wettable flank package ensures reliable soldering and is ideal for automated manufacturing processes.
• Compliance and Status: The chip is REACH unaffected and RoHS3 compliant, adhering to environmental and regulatory standards. It is categorized under ECCN EAR99 and HTSUS 8542.32.0051.
• Packaging: Available in tape and reel (TR) packaging, it is suitable for high-volume production and automated assembly lines.

24CS512T-E/Q6B66KVAO Applications

The 24CS512T-E/Q6B66KVAO is well-suited for applications requiring reliable non-volatile memory storage with fast access times and efficient data writing capabilities. Some specific use cases include:

• Embedded Systems: Ideal for storing firmware and configuration data in embedded devices, ensuring data integrity and quick access during system boot-up and operation.
• Industrial Automation: Suitable for storing calibration data and operational parameters in industrial control systems, where reliability and quick data retrieval are crucial.
• Consumer Electronics: Can be used in devices such as smart meters, home appliances, and IoT devices for storing user settings and operational logs.
• Telecommunications: Effective for storing network configuration data and device-specific information in communication equipment.

Conclusion of 24CS512T-E/Q6B66KVAO

The 24CS512T-E/Q6B66KVAO from Microchip Technology is a versatile EEPROM memory IC chip that offers a balance of storage capacity, speed, and reliability. Its wide voltage range, fast access times, and efficient write cycle times make it an excellent choice for a variety of applications, from embedded systems to industrial automation. Despite being marked as obsolete, its robust features and compliance with environmental standards ensure that it remains a reliable option for engineers and designers seeking a dependable non-volatile memory solution.

24CS512T-E/Q6B66KVAO Documents

Download datasheets and manufacturer documentation for 24CS512T-E/Q6B66KVAO

Datasheets :

24CS512

PCN Obsolescence/ EOL :

24CS512T-E/Q6B66KVAO obs 04/Dec/2023

PCN Design/Specification :

24CS512 21/Jun/2022

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
