Microchip Technology

AT25M02-UUM-T

AT25M02-UUM-T Description

The AT25M02-UUM-T is a high-performance EEPROM memory IC chip designed for a wide range of applications requiring reliable data storage and retrieval. Manufactured by Microchip Technology, this device features a 2Mbit memory size organized as 256K x 8, providing ample storage capacity for various electronic systems. The AT25M02-UUM-T operates with a clock frequency of 5 MHz, ensuring fast data transfer rates and efficient performance. It supports a wide supply voltage range of 1.7V to 5.5V, making it suitable for diverse power supply environments.

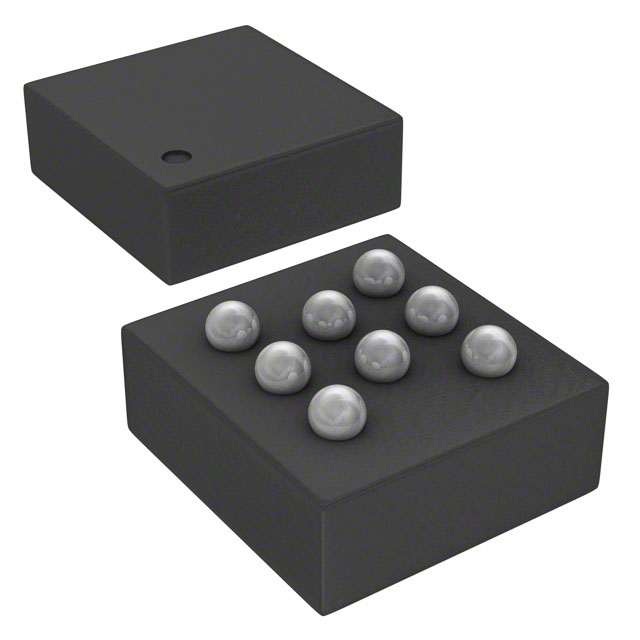

The memory interface is based on the Serial Peripheral Interface (SPI), which is widely used in embedded systems for its simplicity and efficiency. The AT25M02-UUM-T is packaged in an 8-WLCSP (Wafer-Level Chip Scale Package) and is available in tape and reel format, facilitating surface mount assembly processes. This product is REACH unaffected and RoHS3 compliant, adhering to stringent environmental regulations and ensuring safe usage in various industries.

AT25M02-UUM-T Features

• Memory Size and Organization: The AT25M02-UUM-T offers a 2Mbit memory size organized as 256K x 8, providing sufficient storage for complex data sets and configurations.
• Clock Frequency: With a clock frequency of 5 MHz, the device ensures rapid data transfer and efficient operation, making it ideal for high-speed applications.
• Wide Voltage Range: The device operates within a supply voltage range of 1.7V to 5.5V, offering flexibility in power supply requirements and compatibility with various systems.
• SPI Interface: The SPI memory interface simplifies integration into embedded systems, providing a straightforward and efficient communication protocol.
• Write Cycle Time: The write cycle time for word and page operations is 10ms, ensuring quick data write operations without compromising reliability.
• Moisture Sensitivity Level: The AT25M02-UUM-T has a moisture sensitivity level (MSL) of 3 (168 hours), making it suitable for surface mount assembly processes and ensuring robustness in manufacturing environments.
• Compliance and Standards: The device is REACH unaffected and RoHS3 compliant, adhering to environmental regulations ensuring and safe usage in various industries.

AT25M02-UUM-T Applications

The AT25M02-UUM-T is ideal for applications requiring reliable and efficient data storage solutions. Its high memory capacity, fast clock frequency, and wide voltage range make it suitable for a variety of electronic systems, including:

• Embedded Systems: Ideal for embedded systems where reliable data storage and quick data retrieval are crucial.
• Industrial Automation: Provides robust data storage for industrial applications, ensuring data integrity and system reliability.
• Consumer Electronics: Suitable for consumer electronics where compact size and efficient performance are essential.
• Telecommunications: Ideal for telecommunication systems requiring reliable data storage and quick access to stored information.
• Automotive: Suitable for automotive applications where high reliability and robustness are required.

Conclusion of AT25M02-UUM-T

The AT25M02-UUM-T from Microchip Technology is a versatile EEPROM memory IC chip that offers a combination of high memory capacity, fast data transfer rates, and wide voltage range. Its SPI interface and surface mount packaging make it easy to integrate into various electronic systems. The device's compliance with environmental standards and robustness in manufacturing environments further enhance its appeal. The AT25M02-UUM-T is an excellent choice for applications in embedded systems, industrial automation, consumer electronics, telecommunications, and automotive industries, providing reliable and efficient data storage solutions.
