AT28C010-12UM/883 Description

The AT28C010-12UM/883 is a high-performance, 1 Mbit EEPROM memory IC designed by Microchip Technology. This device is organized as 128K x 8, offering a parallel memory interface that ensures fast and efficient data access. With a memory size of 1 Mbit, it is ideal for applications requiring significant non-volatile storage. The AT28C010-12UM/883 operates within a supply voltage range of 4.5V to 5.5V, ensuring compatibility with a wide range of systems.

This EEPROM IC features an access time of 120 ns, making it suitable for high-speed data operations. The write cycle time for a word or page is 10ms, providing a balance between speed and reliability. The AT28C010-12UM/883 is housed in a through-hole 30CPGA package, making it robust and suitable for various industrial and commercial applications. The device is REACH unaffected and RoHS3 compliant, ensuring it meets stringent environmental and safety standards.

AT28C010-12UM/883 Features

• Memory Organization: 128K x 8, providing a total of 1 Mbit of non-volatile storage.
• Parallel Interface: Ensures fast data transfer and compatibility with parallel bus systems.
• Access Time: 120 ns, enabling rapid data retrieval and processing.
• Write Cycle Time: 10ms for word or page writes, balancing speed and reliability.
• Voltage Range: Operates within 4.5V to 5.5V, ensuring broad compatibility.

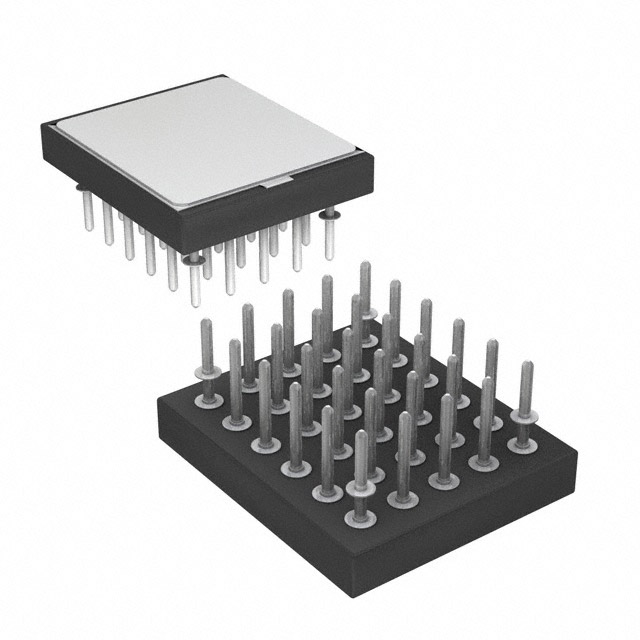

• Package Type: Through-hole 30CPGA, offering robustness and ease of integration.
• Environmental Compliance: REACH unaffected and RoHS3 compliant, ensuring safety and sustainability.
• Moisture Sensitivity Level: MSL 1 (Unlimited), making it suitable for a wide range of environments.

AT28C010-12UM/883 Applications

The AT28C01-012UM/883 is ideal for applications requiring reliable, non-volatile memory storage with fast access times. Its parallel interface and robust packaging make it suitable for a variety of industrial and commercial applications, including:

• Embedded Systems: Ideal for storing firmware and configuration data in embedded devices.
• Industrial Control Systems: Provides reliable storage for critical system parameters and operational data.
• Telecommunications: Used in networking equipment for storing configuration and operational data.
• Consumer Electronics: Suitable for devices requiring non-volatile storage, such as smart meters and home automation systems.

Conclusion of AT28C010-12UM/883

The AT28C010-12UM/883 is a versatile and reliable EEPROM memory IC designed to meet the demands of modern electronic systems. Its fast access times, balanced write cycle times, and robust packaging make it an excellent choice for a wide range of applications. With its compliance to environmental standards and broad voltage range, the AT28C010-12UM/883 ensures long-term reliability and compatibility. Whether used in embedded systems, industrial control, or consumer electronics, this EEPROM IC offers a reliable and efficient solution for non-volatile memory storage.

AT28C010-12UM/883 Documents

Download datasheets and manufacturer documentation for AT28C010-12UM/883

PCN Assembly/Origin :

AT28yyy 29/Aug/2019

Datasheets :

AT28C010 Military

PCN Packaging :

Boxes 07/Dec/2016       Transfer to Microchip/Label/Pkg 5/Sep/2016

Design Resources :

AT28C010 Development Tool Selector

PCN Obsolescence/ EOL :

Reinstated 03/Jun/2019       PGA Pkg EOL 16/Sep/2016

HTML Datasheet :

AT28C010 Military

PCN Design/Specification :

AT28C010 11/Mar/2020       AT28C010 23/Mar/2020

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
