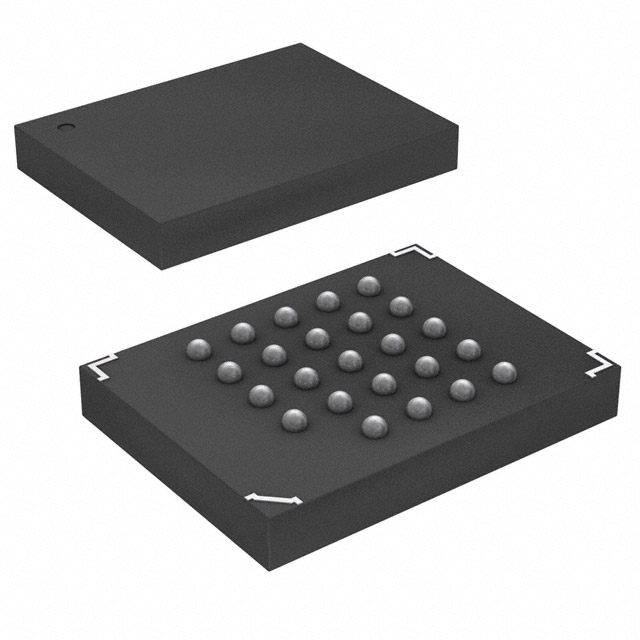

AT45DB161D-CCU

AT45DB161D-CCU Description

The AT45DB161D-CCU is a 16Mbit Flash memory IC chip designed by Microchip Technology, offering robust performance and reliability for various electronic. applications This memory chip features a memory organization of 528 bytes x 4096 pages, providing ample storage capacity for data-intensive tasks. It operates with a clock frequency of 66 MHz, ensuring fast data access and transfer speeds through its SPI (Serial Peripheral Interface) memory interface. The AT45DB161D-CCU is designed for surface mount applications, making it suitable for compact and space-efficient electronic designs.

AT45DB161D-CCU Features

• Memory Size and Organization: The AT45DB161D-CCU boasts a substantial memory size of 16Mbit, organized into 528 bytes per page across 4096 pages. This configuration allows for efficient data storage and retrieval, making it ideal for applications requiring large data sets.
• High-Speed Operation: With a clock frequency of 66 MHz, this Flash memory chip ensures rapid data processing and transfer, crucial for real-time applications and high-speed data handling.
• SPI Interface: The use of the SPI interface simplifies integration into various electronic systems, providing a standardized and reliable method for communication between the memory chip and the host processor.
• Low Power Consumption: Operating within a voltage range of 2.7V to 3.6V, the AT45DB161D-CCU is designed for low power consumption, making it suitable for battery-powered and energy-efficient devices.
• Fast Write Cycle Time: The write cycle time of 6ms per word or page ensures quick data writing capabilities, enhancing the overall performance of the system.
• Surface Mount Technology (SMT): The surface mount mounting type allows for compact and efficient PCB (Printed Circuit Board) designs, reducing the overall footprint and improving the reliability of the electronic system.
• Compliance and Safety: The AT45DB161D-CCU is REACH unaffected andHS Ro3 compliant, ensuring it meets the stringent environmental and safety standards required in the electronics industry.

AT45DB161D-CCU Applications

The AT45DB161D-CCU is well-suited for a variety of applications due to its high memory capacity, fast operation, and low power consumption. Some specific use cases include:

• Embedded Systems: Ideal for embedded systems requiring non-volatile memory for storing firmware, configuration data, and other critical information.
• Industrial Automation: Suitable for industrial applications where reliable data storage and quick access are essential for efficient operation.
• Consumer Electronics: Can be used in consumer electronics such as digital cameras, portable media players, and smart devices where compact design and high performance are crucial.
• Telecommunications: Useful in telecommunication equipment for storing and retrieving data quickly and reliably, supporting high-speed communication protocols.

Conclusion of AT45DB161D-CCU

The AT45DB161D-CCU from Microchip Technology is a versatile and high-performance Flash memory IC chip that offers significant advantages over similar models. Its large memory size, fast clock frequency, and efficient SPI interface make it an excellent choice for a wide range of applications. The low power consumption and surface mount technology further enhance its suitability for modern, compact electronic designs. Despite being marked as obsolete, the AT45DB161D-CCU remains a reliable and robust solution for applications requiring non-volatile memory with high performance and reliability.
