Microchip Technology

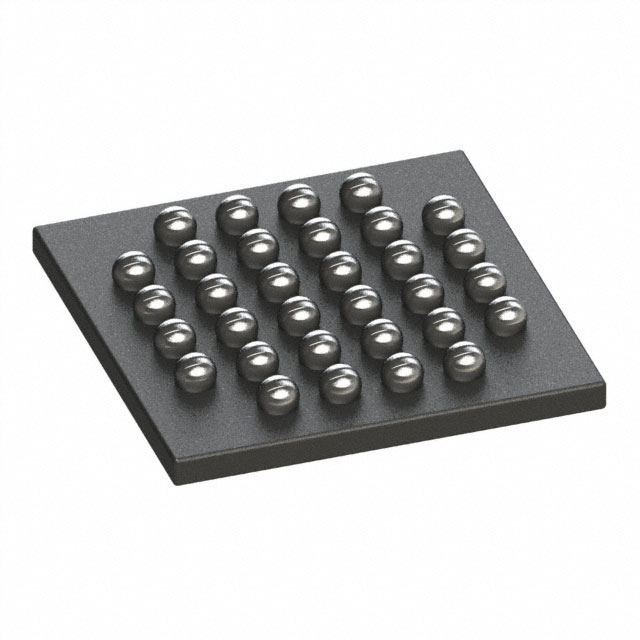

ATSAMD20E16B-UUT

Microcontrollers

The ATSAMD20E16B-UUT is a microcontroller unit (MCU) manufactured by Microchip Technology. It belongs to the SAM D20 family of ARM Cortex-M0+ based MCUs, which are designed for low-power and cost-effective applications.

Description:

The ATSAMD20E16B-UUT features a 32-bit ARM Cortex-M0+ processor with a maximum CPU frequency of 48 MHz. It has 16 KB of on-chip SRAM and 128 KB of flash memory for program storage. The MCU also includes a variety of peripherals, such as a 12-bit ADC, a 16-bit DAC, I2C, SPI, and UART interfaces, as well as a range of timers and PWM channels.

Features:

1. ARM Cortex-M0+ processor with a 48 MHz CPU frequency
2. 16 KB of on-chip SRAM
3. 128 KB of flash memory for program storage
4. 12-bit ADC with up to 20 channels
5. 16-bit DAC with a resolution of 10 mV
6. I2C, SPI, and UART interfaces for communication
7. Timers and PWM channels for control applications
8. Low-power modes to conserve energy
9. Small form factor package options available

Applications:

The ATSAMD20E16B-UUT is suitable for a wide range of applications that require low-power and cost-effective solutions. Some potential applications include:

1. Industrial control and automation systems
2. Portable and wearable devices
3. Medical devices and equipment
4. Smart home and IoT devices
5. Battery-powered devices
6. Human interface devices (HID) such as keyboards and mice
7. Sensor interfaces and data acquisition systems
8. Lighting control and dimming applications
9. Simple motor control applications

The ATSAMD20E16B-UUT's combination of low-power consumption, a range of communication interfaces, and a compact form factor make it an ideal choice for many embedded systems and IoT applications.
