Microchip Technology

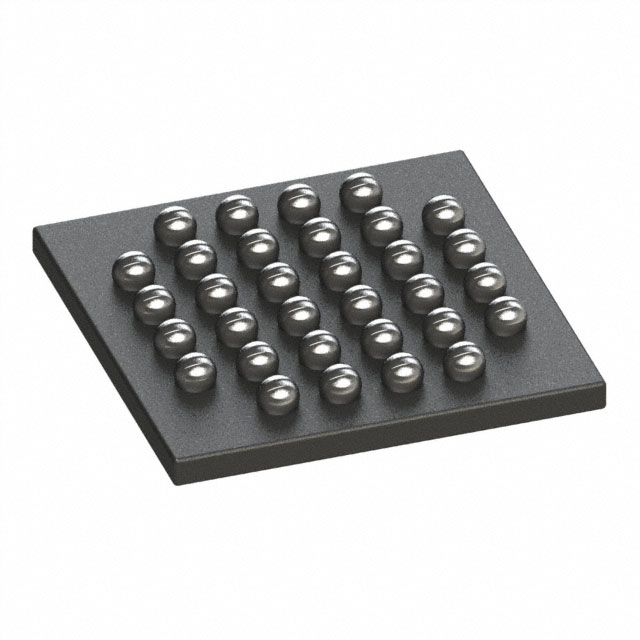

ATSAML10E15A-UUT

Microcontrollers

The ATSAML10E15A-UUT is a low-power microcontroller unit (MCU) from Microchip Technology. It is part of the SAM L10 family of ARM Cortex-M23 based MCUs, designed for a wide range of IoT devices and applications that require low power consumption, high security, and a small form factor.

Description:

The ATSAML10E15A-UUT is a high-performance, low-power MCU that features an ARM Cortex-M23 processor with a 48MHz clock speed. It is equipped with 512KB of flash memory and 96KB of SRAM, providing ample storage for code and data. The MCU also includes a range of communication interfaces, including USB, UART, SPI, and I2C, as well as a range of peripheral modules, including ADC, DAC, and PWM.

Features:

1. ARM Cortex-M23 Processor: The ATSAML10E15A-UUT features an ARM Cortex-M23 processor with a 48MHz clock speed, providing high performance and low power consumption.
2. Memory: The MCU includes 512KB of flash memory and 96KB of SRAM, providing ample storage for code and data.
3. Communication Interfaces: The ATSAML10E15A-UUT includes a range of communication interfaces, including USB, UART, SPI, and I2C, allowing it to interface with a wide range of devices and networks.
4. Peripheral Modules: The MCU includes a range of peripheral modules, including ADC, DAC, and PWM, providing flexibility for a wide range of applications.
5. Security Features: The ATSAML10E15A-UUT includes a range of security features, including secure boot, flash memory protection, and AES encryption, providing protection against unauthorized access and data breaches.
6. Low Power Consumption: The MCU is designed for low power consumption, making it ideal for battery-powered devices and other applications where power efficiency is critical.

Applications:

The ATSAML10E15A-UUT is suitable for a wide range of applications, including:

1. IoT Devices: The MCU's low power consumption and range of communication interfaces make it well-suited for IoT devices, such as smart home devices, wearables, and industrial sensors.
2. Medical Devices: The ATSAML10E15A-UUT's high performance and security features make it suitable for medical devices, such as portable monitoring devices and medical instruments.
3. Industrial Automation: The MCU's range of peripheral modules and communication interfaces make it well-suited for industrial automation applications, such as motor control and sensor interfacing.
4. Portable Devices: The ATSAML10E15A-UUT's low power consumption and small form factor make it ideal for portable devices, such as handheld instruments and mobile devices.

In summary, the ATSAML10E15A-UUT is a high-performance, low-power MCU from Microchip Technology that is well-suited for a wide range of applications, including IoT devices, medical devices, industrial automation, and portable devices. Its ARM Cortex-M23 processor, ample memory, range of communication interfaces, and security features make it a versatile and powerful choice for embedded systems design.

ATSAML10E15A-UUT Documents

Download datasheets and manufacturer documentation for ATSAML10E15A-UUT

Errata :

SAM L10/L11 Family Errata, Clarification

PCN Assembly/Origin :

Assembly Site 12/May/2023

Datasheets :

SAM L10/L11 Family Sellsheet       SAM L10/L11 Family Datasheet

Design Resources :

ATSAML10E15A Development Tool Selector

HTML Datasheet :

SAM L10/L11 Family Sellsheet

PCN Design/Specification :

SAM L10/L11 Datasheet 05/Jun/2023       SAM L10/L11 26/Jun/2020

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
