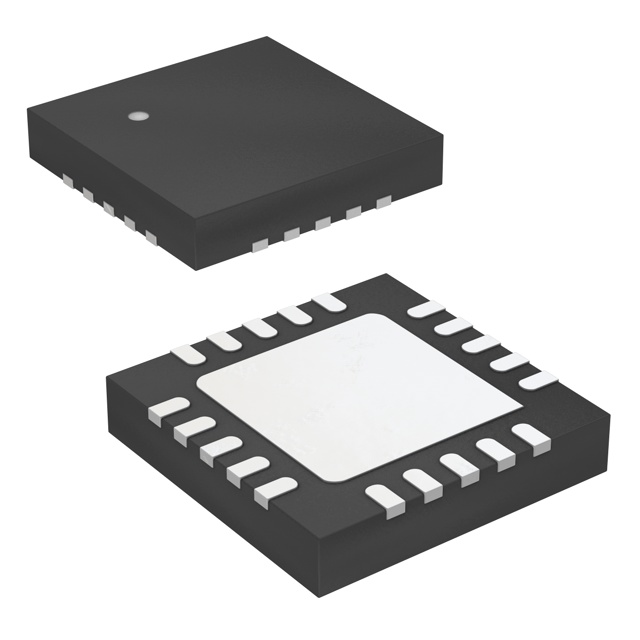

ATTINY806-MN

Microchip Technology's ATTINY806-MN is a low-power, high-performance 8-bit microcontroller (MCU) that is part of the AVR Enhanced Series. This MCU is designed for a wide range of applications, including industrial control, medical devices, and consumer electronics.

Description:

The ATTINY806-MN is based on the enhanced AVR core, which provides high code density, high performance, and low power consumption. It features 8 KB of In-System Programmable (ISP) flash memory, 512 bytes of EEPROM, and 512 bytes of SRAM. The device operates at a supply voltage range of 1.8V to 5.5V and has an operating temperature range of -40°C to +85°C.

Features:

1. Enhanced AVR core with high code efficiency and performance
2. 8 KB ISP flash memory
3. 512 bytes EEPROM
4. 512 bytes SRAM
5. Supply voltage range: 1.8V to 5.5V
6. Operating temperature range: -40°C to +85°C
7. I/O lines with optional internal pull-up resistors
8. On-chip debug system with JTAG interface
9. Sleep mode for low-power consumption
10. Wide range of programmable clock sources
11. Enhanced USART with IrDA and LIN support
12. SPI interface
13. Two-wire serial interface (TWI)
14. 8-channel, 10-bit ADC with up to 8 external inputs
15. Programmable watchdog timer (WDT)
16. On-chip oscillator with calibration
17. CRC-32 support for error detection

Applications:

The ATTINY806-MN is suitable for various applications due to its low power consumption, high performance, and versatile features. Some potential applications include:

1. Industrial control systems
2. Medical devices and equipment
3. Consumer electronics, such as smart appliances and IoT devices
4. Portable devices and battery-powered applications
5. Automotive control systems
6. Smart sensors and monitoring systems
7. Data acquisition and signal processing systems
8. Home automation and security systems
9. Lighting control systems
10. Embedded systems in robotics and automation

The ATTINY806-MN's combination of performance, low power consumption, and a wide range of features make it an ideal choice for a variety of applications where efficiency and reliability are crucial.
