Microchip Technology

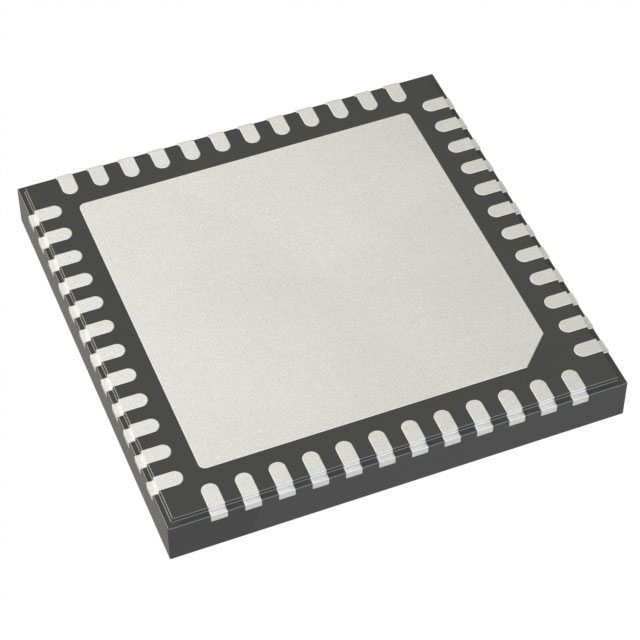

DSPIC33CK256MP305T-I/M7

Microcontrollers

The Microchip Technology's DSPIC33CK256MP305T-I/M7 is a high-performance digital signal controller (DSC) that is designed for use in a wide range of applications. This device is part of the dsPIC33CK family of DSCs, which are known for their high-speed processing capabilities, advanced peripherals, and low power consumption.

Description:

The DSPIC33CK256MP305T-I/M7 is a 16-bit digital signal controller that features a high-performance core with a maximum CPU speed of up to 100 MIPS. It includes 256KB of flash memory for program storage, as well as 16KB of RAM for data storage. The device also includes a range of advanced peripherals, including a 10-bit ADC, a 16-bit DAC, and a range of communication interfaces such as UART, SPI, and I2C.

Features:

• High-performance core with a maximum CPU speed of up to 100 MIPS
• 256KB of flash memory for program storage
• 16KB of RAM for data storage
• 10-bit ADC with up to 20 channels
• 16-bit DAC with up to 2 channels
• UART, SPI, and I2C communication interfaces
• Advanced control features such as PWM and motor control
• Low power consumption with power-down modes

Applications:

The DSPIC33CK256MP305T-I/M7 is suitable for a wide range of applications that require high-speed processing and advanced control capabilities. Some of the potential applications for this device include:

• Motor control in industrial automation systems
• Audio processing and filtering in professional audio equipment
• Signal processing in medical equipment
• Control systems for power electronics
• Advanced control in automotive applications

Overall, the DSPIC33CK256MP305T-I/M7 is a powerful and versatile digital signal controller that is well-suited for a wide range of applications that require high-speed processing and advanced control capabilities. Its advanced peripherals and low power consumption make it an ideal choice for a variety of applications.

DSPIC33CK256MP305T-I/M7 Documents

Download datasheets and manufacturer documentation for DSPIC33CK256MP305T-I/M7

Datasheets :

dsPIC33CK512MP608 Family

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
