Microchip Technology

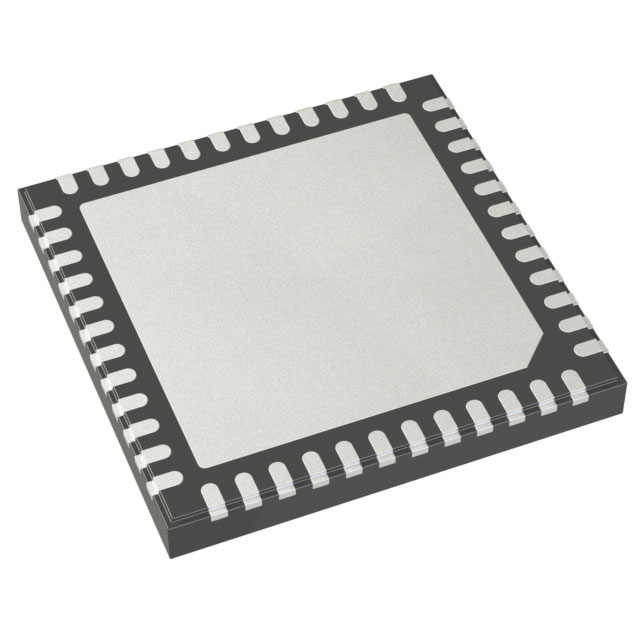

DSPIC33CK512MP605T-I/M7

Microcontrollers

The Microchip Technology's DSPIC33CK512MP605T-I/M7 is a high-performance digital signal controller (DSC) that combines the features of a microcontroller and a digital signal processor (DSP) in a single chip. This device is designed to provide high computational power and flexibility for a wide range of applications.

Description:

The DSPIC33CK512MP605T-I/M7 is a member of the dsPIC33CK family of DSCs. It features a 512KB flash memory, 256KB RAM, and a 16-bit central processing unit (CPU) that operates at a clock speed of up to 80 MHz. The device also includes a range of peripherals, such as UART, SPI, I2C, and USB, as well as a range of timers and communication interfaces.

Features:

Some of the key features of the DSPIC33CK512MP605T-I/M7 include:

1. High-performance CPU: The device features a 16-bit CPU that can operate at clock speeds of up to 80 MHz, providing high computational power for demanding applications.
2. Large memory: The device includes 512KB of flash memory and 256KB of RAM, providing ample space for storing program code and data.
3. Peripherals: The device includes a range of peripherals, including UART, SPI, I2C, and USB, as well as a range of timers and communication interfaces.
4. High-resolution PWM: The device includes high-resolution pulse-width modulation (PWM) modules that can be used for motor control and other applications.
5. Security features: The device includes a range of security features, including secure boot, secure debug, and secure storage, to protect against unauthorized access and tampering.

Applications:

The DSPIC33CK512MP605T-I/M7 is suitable for a wide range of applications, including:

1. Motor control: The device's high-performance CPU and high-resolution PWM modules make it well-suited for motor control applications, such as brushless DC motor control and AC motor control.
2. Power management: The device's advanced peripherals and communication interfaces make it suitable for power management applications, such as battery management systems and smart grid systems.
3. Industrial automation: The device's high computational power and advanced peripherals make it suitable for industrial automation applications, such as robotic control and machine control.
4. Medical devices: The device's advanced security features and high-performance CPU make it suitable for medical devices, such as portable medical instruments and medical imaging systems.
5. Automotive applications: The device's advanced peripherals and communication interfaces make it suitable for automotive applications, such as engine control systems and advanced driver assistance systems (ADAS).

DSPIC33CK512MP605T-I/M7 Documents

Download datasheets and manufacturer documentation for DSPIC33CK512MP605T-I/M7

Datasheets :

dsPIC33CK512MP608 Family

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
