Microchip Technology

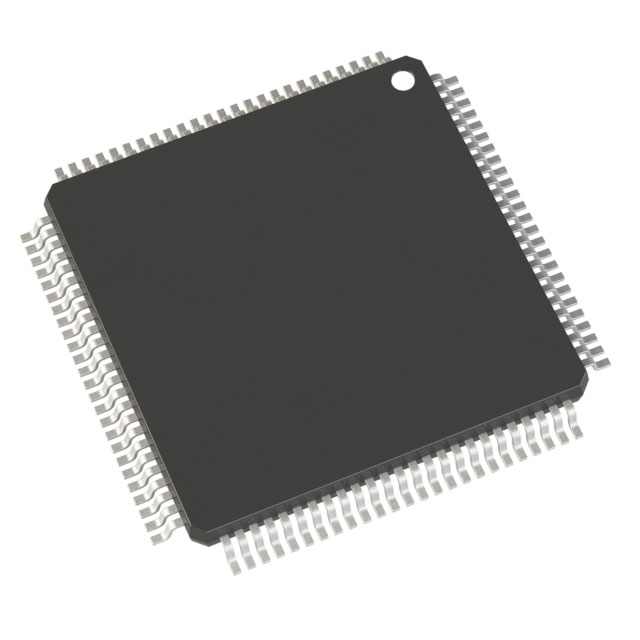

DSPIC33FJ256MC710-I/PT

Microcontrollers

The Microchip Technology's DSPIC33FJ256MC710-I/PT is a high-performance digital signal controller (DSC) that is designed for a wide range of applications, including motor control, power management, and industrial control systems.

Description:

The DSPIC33FJ256MC710-I/PT is a member of the dsPIC33FJ family of DSCs. It features a 16-bit central processing unit (CPU) with a high-speed, pipelined architecture that can operate at clock speeds of up to 100 MIPS (million instructions per second). The device also includes a range of integrated peripherals, such as a 10-bit analog-to-digital converter (ADC), a 12-bit digital-to-analog converter (DAC), and a range of communication interfaces, including USB, CAN, and Ethernet.

Features:

• 16-bit CPU with high-speed, pipelined architecture
• Up to 100 MIPS performance
• Integrated 10-bit ADC and 12-bit DAC
• Range of communication interfaces, including USB, CAN, and Ethernet
• Advanced control features, such as space vector modulation (SVM) and field-oriented control (FOC)
• On-chip memory, including flash and RAM
• Low-power operation and sleep modes
• High level of integration, with many functions integrated on-chip

Applications:

The DSPIC33FJ256MC710-I/PT is suitable for a wide range of applications, including:

• Motor control, including brushless DC (BLDC) motors, permanent magnet synchronous motors (PMSM), and induction motors
• Power management, including battery management systems and power supply control
• Industrial control systems, including robotics and automation
• Medical devices, such as portable ultrasound machines and infusion pumps
• Automotive applications, such as engine control and powertrain management

Overall, the DSPIC33FJ256MC710-I/PT is a powerful and versatile digital signal controller that is well-suited for a wide range of applications that require high performance, advanced control features, and a high level of integration.

DSPIC33FJ256MC710-I/PT Documents

Download datasheets and manufacturer documentation for DSPIC33FJ256MC710-I/PT

Errata :

dsPIC33FJzzzMC Family Errata

PCN Assembly/Origin :

Qualification Lead-Frame Paddle 20/Oct/2014

Datasheets :

DSPIC33F Product Overview       dsPIC30F2010       DSPIC33FJzzzMCx06,x08,x10 Datasheet

PCN Packaging :

MBB/Label Chgs 16/Nov/2018       Label and Packing Changes 23/Sep/2015

Reference Design Library :

DM330023: Sensorless Speed Control w/PFC, 90 ~ 265AC       DM330021: 240W 3-Phase Motor Controller, 0 ~ 48V

Design Resources :

dsPIC33FJ256MC710 Development Tool Selector

HTML Datasheet :

16-bit Embedded Control Solutions       DSPIC33F Product Overview

PCN Design/Specification :

Palladium Copper Wire 05/Nov/2013

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
