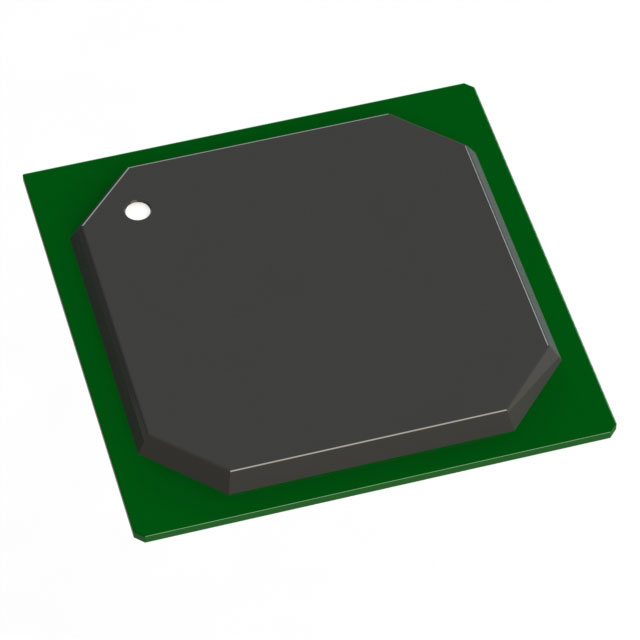

M2S090-FGG676

System On Chip (SoC)

M2S090-FGG676 Description

The M2S090-FGG676 from Microchip Technology is a high-performance System-on-Chip (SoC) integrating an ARM Cortex-M3 MCU and FPGA fabric in a single 676-pin FBGA package. Designed for embedded systems requiring flexibility and processing power, it operates at 166MHz with 512KB Flash and 64KB RAM, enabling efficient real-time processing. The device supports a wide 0°C to 85°C industrial temperature range and features 425 I/Os, making it ideal for complex interfacing. Its SmartFusion®2 series architecture combines programmable logic with hardened peripherals, including DDR, PCIe, and SERDES, for high-speed data handling.

M2S090-FGG676 Features

• Dual Architecture: Combines MCU (Cortex-M3) and FPGA for reconfigurable logic and deterministic processing.
• High-Speed Connectivity: Integrated CANbus, Ethernet, USB, UART, SPI, and I2C for versatile communication.
• Industrial Robustness: ROHS3 compliant, REACH unaffected, and MSL3-rated for reliability in harsh environments.
• Rich Peripherals: Includes DDR controllers, PCIe, and SERDES for high-bandwidth applications.
• Scalable Memory: 512KB Flash and 64KB RAM support embedded OS and real-time tasks.
• Low-Power FPGA Fabric: Optimized for power-sensitive designs without sacrificing performance.

M2S090-FGG676 Applications

• Industrial Automation: PLCs, motor control, and robotics leveraging FPGA flexibility and MCU real-time response.
• Communications: Gateway and protocol conversion with Ethernet, PCIe, and SERDES support.
• Embedded Vision: Sensor fusion and preprocessing using FPGA fabric for high-speed data pipelines.
• Aerospace & Defense: Ruggedized systems requiring -40°C to 85°C operation (with derating).
• Medical Devices: Secure, low-latency processing for diagnostics and imaging equipment.

Conclusion of M2S090-FGG676

The M2S090-FGG676 stands out for its hybrid MCU+FPGA architecture, offering unparalleled design flexibility and performance in a single package. Its industrial-grade reliability, extensive I/O, and high-speed interfaces make it a superior choice for applications demanding both processing power and reconfigurable logic. Compared to standalone MCUs or FPGAs, it reduces BOM complexity while enabling optimized power-performance tradeoffs. Ideal for Industry 4.0, IoT edge nodes, and mission-critical systems, this SoC delivers a future-proof solution for next-generation embedded designs.
