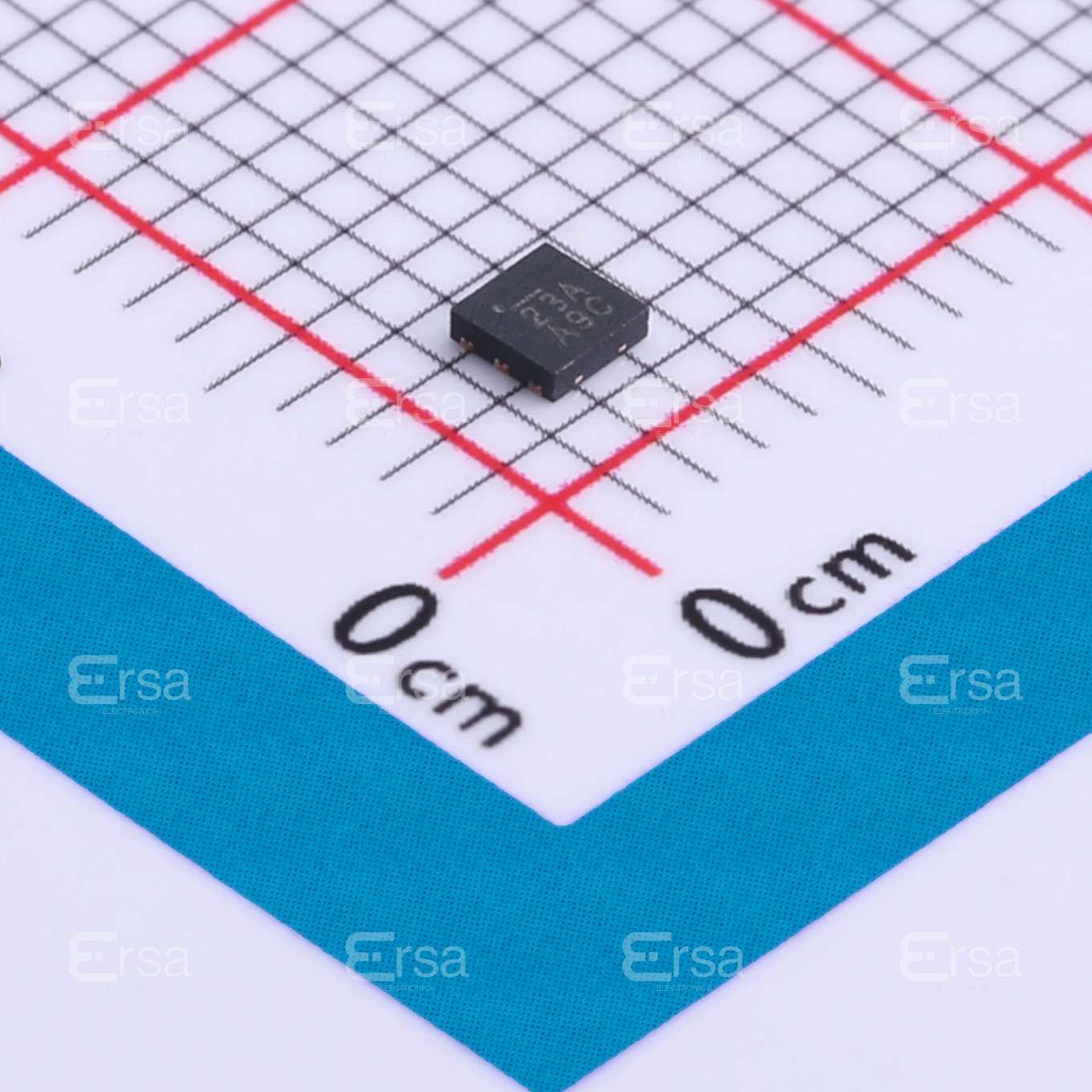

MIC5323YMT-TR

MIC5323YMT-TR Description

The MIC5323YMT-TR is a high-performance, adjustable linear voltage regulator designed by Microchip Technology. This device is part of the Linear & Switching Voltage Regulators category and is ideal for applications requiring precise voltage regulation with minimal power loss. The regulator features an adjustable output voltage ranging from 1.25V to 5.5V, making it versatile for various electronic systems. It supports a maximum input voltage of 5.5V and can deliver up to 300mA of output current, ensuring robust performance in power-sensitive applications.

MIC5323YMT-TR Features

• Adjustable Output Voltage: The MIC5323YMT-TR offers an adjustable output voltage range from 1.25V to 5.5V, providing flexibility for different circuit requirements.
• Low Dropout Voltage: With a maximum dropout voltage of 0.17V at 300mA, this regulator ensures efficient power delivery even at low input-to-output voltage differentials.
• Low Quiescent Current: The regulator maintains a low quiescent current of 150 µA, which is crucial for battery-operated devices and low-power applications.
• High PSRR: The Power Supply Rejection Ratio (PSRR) ranges from 80dB at 1kHz to 65dB at 10kHz, ensuring excellent noise suppression and stable output voltage.
• Enable Control Feature: The enable pin allows for easy control of the regulator’s operation, enabling power-saving modes and dynamic power management.
• Protection Features: The regulator includes over-current and over-temperature protection, safeguarding the device and connected circuits from potential damage.
• Compliance and Packaging: The MIC5323YMT-TR is REACH unaffected and RoHS3 compliant, ensuring environmental safety. It is available in a surface-mount package (Tape & Reel), facilitating easy integration into modern PCB designs.

MIC5323YMT-TR Applications

The MIC5323YMT-TR is well-suited for a variety of applications where precise voltage regulation and low power consumption are critical. Some specific use cases include:

• Battery-Powered Devices: Ideal for portable electronics such as smartphones, tablets, and wearable devices where low quiescent current and adjustable output voltage are essential.
• Embedded Systems: Suitable for microcontroller-based systems that require stable power supply and efficient power management.
• Communication Equipment: Effective in wireless modules and IoT devices where high PSRR and low dropout voltage are necessary to maintain signal integrity.
• Consumer Electronics: Applicable in devices like digital cameras, media players, and smart home appliances that demand reliable power regulation.

Conclusion of MIC5323YMT-TR

The MIC5323YMT-TR stands out in the market due to its combination of adjustable output voltage, low dropout voltage, and low quiescent current. These features make it an excellent choice for applications where power efficiency and flexibility are paramount. The inclusion of enable control and robust protection mechanisms further enhances its reliability and versatility. With its compliance to environmental standards and surface-mount packaging, the MIC5323YMT-TR is a reliable and efficient solution for modern electronic designs.
