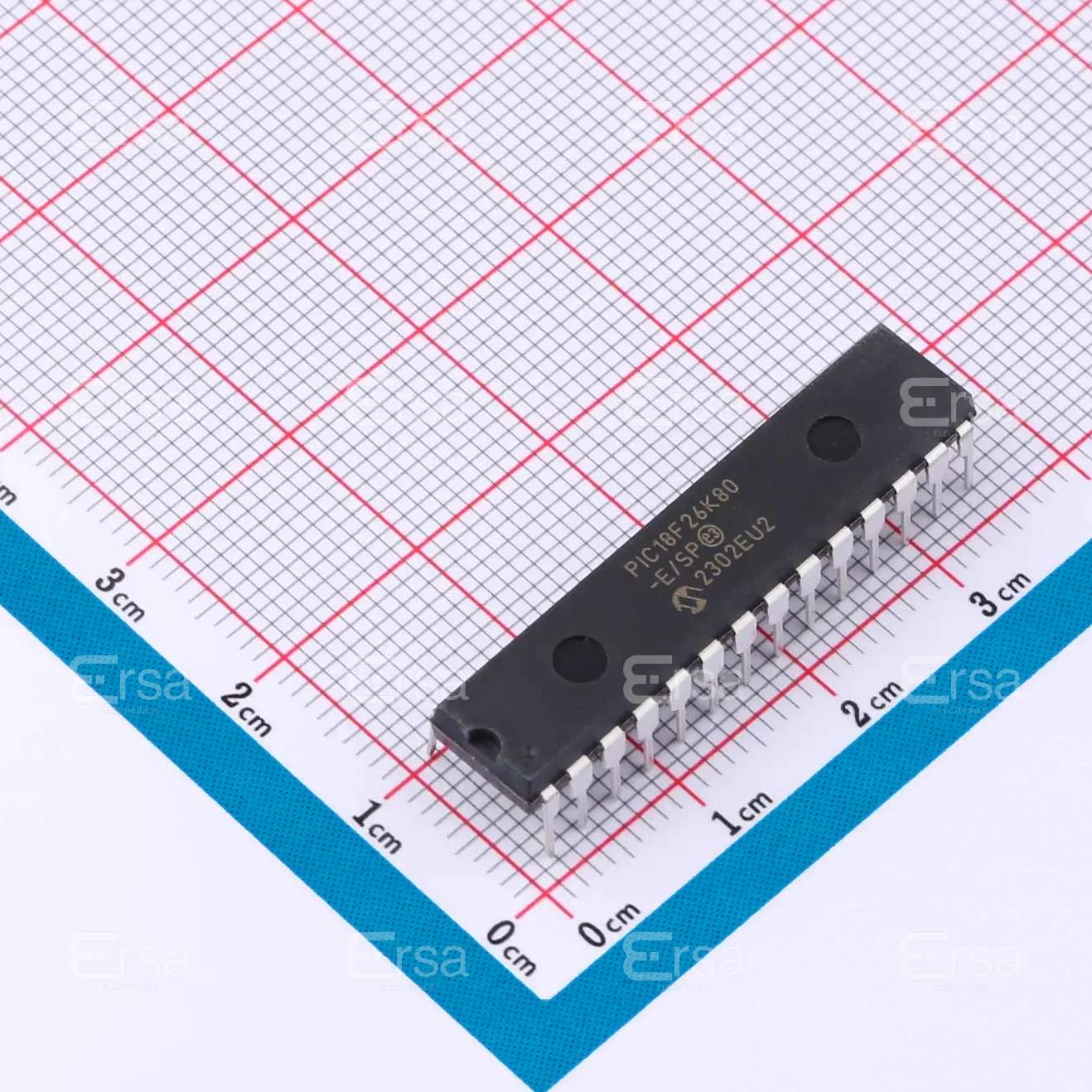

PIC18F26K80-E/SP

Microcontrollers

The PIC18F26K80-E/SP is a microcontroller (MCU) from Microchip Technology's PIC18F series. It is a member of the 8-bit PIC18F family, which is known for its high performance, low power consumption, and a wide range of integrated peripherals.

Description:

The PIC18F26K80-E/SP is a high-performance, 8-bit, enhanced mid-range microcontroller with a 16-bit instruction set. It features a 28-pin small-outline package (SOIC) and is designed for a wide range of embedded control applications.

Features:

1. Enhanced mid-range core with a 16-bit instruction set
2. 64 Kbytes of Flash program memory
3. 4 Kbytes of RAM
4. 256 bytes of EEPROM
5. 16-bit wide instruction bus and data bus
6. On-chip debugging and programming with ICD 3
7. Up to 43 digital I/O lines
8. 5-Channel, 10-bit A/D converter
9. Two 16-bit timer/counters with capture/compare/PWM modules
10. USB 2.0 full-speed device interface
11. On-chip oscillator with PLL for system clock multiplication
12. Low-power sleep modes to conserve energy
13. On-chip reference voltage for the A/D converter
14. Enhanced USART for serial communication
15. In-circuit serial programming (ICSP) and debugging support

Applications:

The PIC18F26K80-E/SP is suitable for a wide range of applications due to its versatile features and high performance. Some of the potential applications include:

1. Industrial control systems
2. Automotive control modules
3. Consumer electronics
4. Medical devices
5. Smart appliances
6. Data acquisition systems
7. Home automation and security systems
8. Portable electronic devices
9. Power management and monitoring systems
10. Motor control applications

The PIC18F26K80-E/SP's combination of performance, memory, and peripheral integration makes it an ideal choice for developers looking to create compact, efficient, and reliable embedded systems.
