Microchip Technology

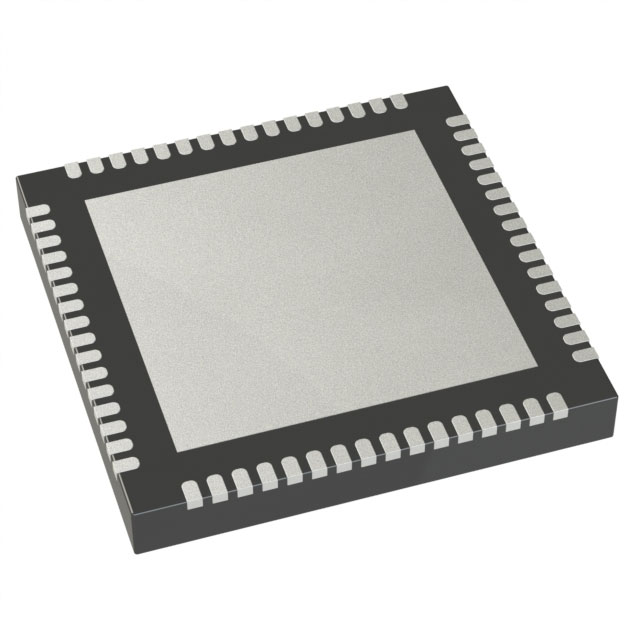

PIC24FJ256GB606T-I/MR

Microcontrollers

Microchip Technology's PIC24FJ256GB606T-I/MR is a high-performance microcontroller (MCU) that belongs to the PIC24FJ series. This MCU is designed for a wide range of applications, including industrial control, automotive systems, and consumer electronics.

Description:

The PIC24FJ256GB606T-I/MR is a 16-bit MCU based on the enhanced Central Processing Unit (eCPU) architecture. It features a high-speed, low-power design that makes it suitable for energy-sensitive applications. The device is housed in a 100-pin TQFP (Thin Quad Flat Package) package.

Features:

1. Core: 16-bit eCPU with a maximum CPU frequency of 80 MHz.
2. Memory: 256KB of Flash program memory, 16KB of SRAM, and 16KB of EEPROM.
3. Peripherals: The device includes a variety of peripherals such as UARTs, SPI, I2C, USB, CAN, and a 10-bit ADC with up to 20 channels.
4. Connectivity: Integrated USB 2.0 high-speed device interface and support for Ethernet communication.
5. Security: FlashWrite Protection, EEPROMWrite Protection, and a unique 64-bit device ID for secure identification.
6. Power Management: Integrated voltage regulator, low-power sleep modes, and power-on-reset (POR) functionality.
7. Timers: Advanced Timer (AT) with up to 4 channels, Event Counter (EV), and Watchdog Timer (WDT).
8. Digital I/O: 54 digital I/O pins with configurable input/output options and support for external interrupts.

Applications:

1. Industrial Control: The PIC24FJ256GB606T-I/MR can be used in motor control, sensor interfacing, and data acquisition systems.
2. Automotive Systems: Suitable for applications such as body control modules, infotainment systems, and engine management systems.
3. Consumer Electronics: Ideal for applications like smart appliances, portable devices, and home automation systems.
4. Medical Devices: Can be used in medical equipment for data processing, monitoring, and control.
5. Communication Systems: The integrated USB and Ethernet interfaces make it suitable for networking applications and IoT devices.
6. Renewable Energy Systems: The MCU can be used in solar power systems, wind energy systems, and energy management applications.

The PIC24FJ256GB606T-I/MR offers a combination of performance, memory, and connectivity options that make it a versatile choice for a wide range of embedded applications. Its low-power features and robust security measures also make it an attractive option for energy-sensitive and secure applications.

PIC24FJ256GB606T-I/MR Documents

Download datasheets and manufacturer documentation for PIC24FJ256GB606T-I/MR

Errata :

PIC24FJ1024GA610/GB610 Family Errata

PCN Assembly/Origin :

Cancellation Notice: 29/Mar/2022

Datasheets :

PIC24FJ1024GA610/GB610 Family

PCN Packaging :

MBB/Label Chgs 16/Nov/2018

Reference Design Library :

DM164128: 2 Capacitive Keypads & Slider Panel

Design Resources :

PIC24FJ256GB606 Development Tool Selector

HTML Datasheet :

PIC24FJ1024GA610/GB610 Family

PCN Design/Specification :

PIC24FJ1024GA610/GB610 27/Feb/2018       PIC24FJ1024GA610/GB610 25/Oct/2019

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
