VSC8522XJQ-02 Description

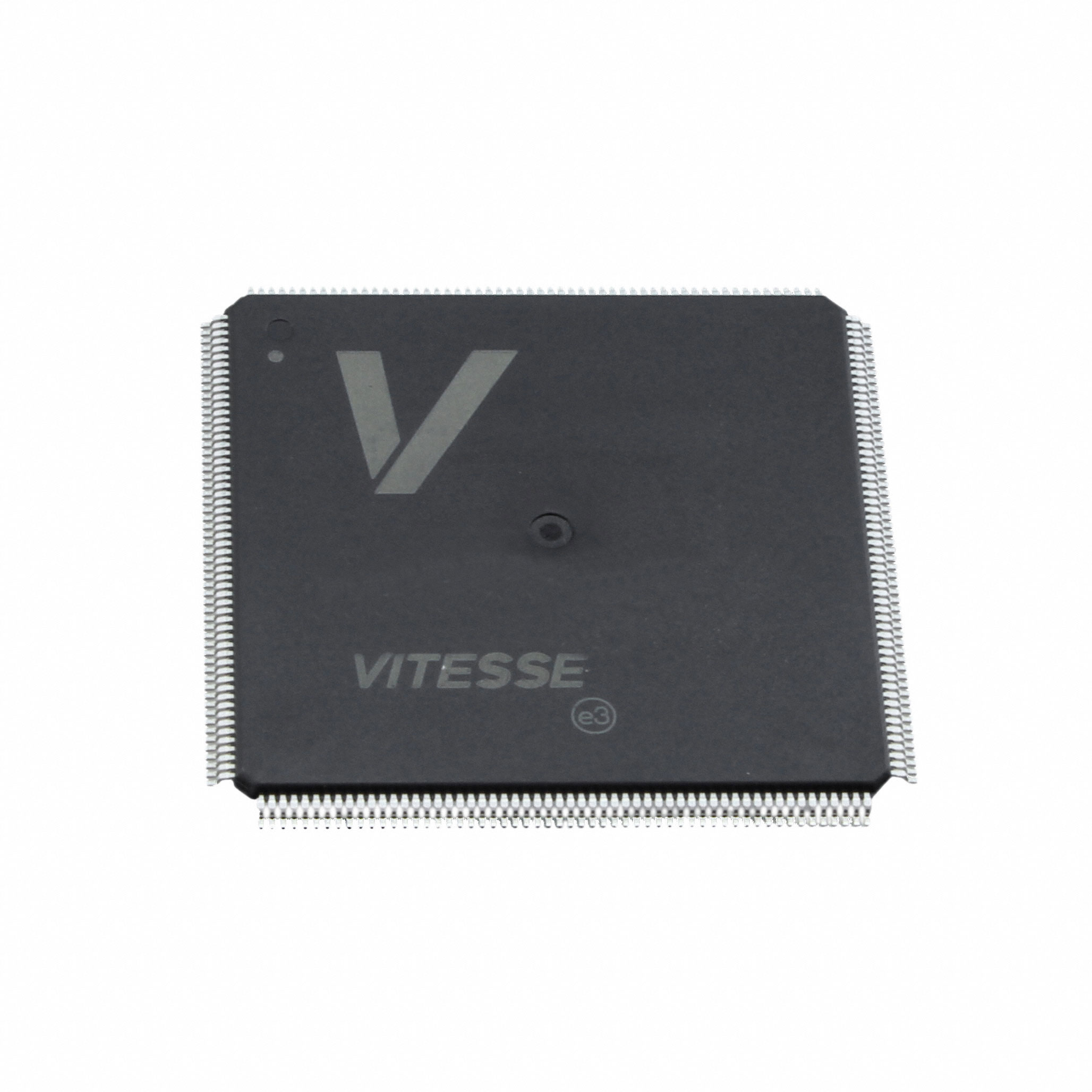

The VSC8522XJQ-02 is an obsolete Ethernet interface IC chip manufactured by Microchip Technology, designed for robust and reliable network communication. This 302TQFP packaged IC operates within a temperature range of 0°C to 125°C making, it suitable for a variety of industrial and commercial applications. The VSC8522XJQ-02 is categorized under Interface IC Chips and is designed to provide high-performance Ethernet connectivity.

VSC8522XJQ-02 Features

• Operating Temperature: The VSC8522XJQ-02 operates reliably within a wide temperature range of 0°C to 125°C, ensuring stable performance in diverse environmental conditions.
• Mounting Type: The surface mount technology (SMT) used for the VSC8522XJQ-02 allows for efficient and compact integration into various electronic systems.
• ECCN and HTSUS: With an ECCN of 5A991B1 and HTSUS code 8542.39.0001, the VSC8522XJQ-02 complies with international trade regulations, facilitating its use in global markets.
• Package: The IC is packaged in a tray format, which is ideal for automated assembly processes and ensures protection during handling and storage.
• Number of Circuits: The VSC8522XJQ-02 features a single circuit, simplifying design and reducing complexity in network interface applications.
• Interface: The Ethernet interface supports high-speed data transmission, making it suitable for modern networking requirements.
• Compliance: The VSC8522XJQ-02 is REACH unaffected and ROHS3 compliant, ensuring it meets stringent environmental and safety standards.
• Moisture Sensitivity Level (MSL): With an MSL of 4 (72 hours), the VSC8522XJQ-02 is designed to withstand moderate moisture exposure, enhancing its reliability in various operational environments.

VSC5822XJQ-02 Applications

The VSC8522XJQ-02 is ideal for applications requiring reliable and high-performance Ethernet connectivity. Its robust design and wide operating temperature range make it suitable for:

• Industrial Networks: Providing stable Ethernet connections in harsh industrial environments.
• Telecommunications: Enhancing network reliability in telecom infrastructure.
• Embedded Systems: Integrating Ethernet capabilities into compact and efficient embedded devices.
• Commercial Applications: Ensuring reliable network performance in various commercial settings.

Conclusion of VSC8522XJQ-02

The VSC8522XJQ-02, despite being obsolete, remains a reliable choice for applications requiring robust Ethernet connectivity. Its wide operating temperature range, surface mount technology, and compliance with international standards make it a versatile and dependable solution. While newer models may offer additional features, the VSC8522XJQ-02 continues to provide value in environments where its specific attributes are critical.

VSC8522XJQ-02 Documents

Download datasheets and manufacturer documentation for VSC8522XJQ-02

PCN Assembly/Origin :

Test Site 10/Mar/2020

Datasheets :

VSC8522-02

PCN Packaging :

MBB/Label Chgs 16/Nov/2018       VSCYYY 09/Jan/2017

PCN Obsolescence/ EOL :

VSCYYY 26/May/2020

HTML Datasheet :

VSC8522-02

PCN Design/Specification :

Marking Changes 27/Sep/2018       VCSYYY 25/Jun/2019

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
