Monolithic Power Systems

MP4030AGS-Z

External/Internal LED Drivers

MP4030AGS-Z Description

The MP4030AGS-Z, manufactured by Monolithic Power Systems Inc., is an AC-DC offline switcher specifically designed for external/internal LED drivers. With a flyback topology, this device offers a reliable and efficient solution for lighting applications. As a product not recommended for new designs, it still provides significant benefits in terms of performance and versatility.

MP4030AGS-Z Features

• Voltage Supply Range: The MP4030AGS-Z operates within a wide voltage supply range of 11V to 27V, ensuring compatibility with various power sources.
• Single Output: This IC features a single output, making it suitable for applications requiring a straightforward power supply.
• Triac Dimming: The MP4030AGS-Z supports Triac dimming, allowing for precise control over LED brightness.
• Surface Mount: The device is designed for surface mount, which is ideal for compact and space-constrained applications.

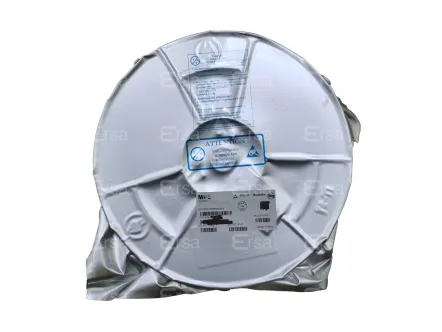

• Package: It comes in a tape and reel (TR) packaging, facilitating automated assembly processes.
• REACH and RoHS Compliance: The MP4030AGS-Z is REACH unaffected and RoHS3 compliant, ensuring environmental safety and regulatory adherence.
• Moisture Sensitivity Level (MSL): With an MSL of 2, the device has a one-year shelf life, which is crucial for inventory management.

MP4030AGS-Z Applications

The MP4030AGS-Z is particularly well-suited for lighting applications, where efficient power management and dimming capabilities are essential. It is ideal for:

• LED Lighting Fixtures: Due to its compact design and wide voltage range, it can be used in various LED lighting fixtures, including streetlights, indoor lighting, and more.
• Industrial Lighting: Its robust design and ability to handle a wide voltage range make it suitable for industrial lighting applications where reliability is crucial.
• Outdoor Lighting: The MP4030AGS-Z can be used in outdoor lighting systems, such as floodlights and garden lights, where it can provide stable power and dimming capabilities.

Conclusion of MP4030AGS-Z

While the MP4030AGS-Z is not recommended for new designs, it remains a valuable option for existing projects and applications in the lighting industry. Its unique combination of wide voltage range, Triac dimming, and environmental compliance make it a reliable choice for both indoor and outdoor lighting solutions. Despite its limitations, the MP4030AGS-Z continues to offer performance benefits and advantages over similar models in specific use cases.

MP4030AGS-Z Documents

Download datasheets and manufacturer documentation for MP4030AGS-Z
